2: General operation Model DMM7510 7½ Digit Graphical Sampling Multimeter
2-12 DMM7510-901-01 Rev. B / May 2015
Screen descriptions
The following topics describe the screens and options that you can view on the Model DMM7510
front-panel display.
Home screen
This is the default screen that you see whenever you turn the Model DMM7510 on or when you press
the HOME key. The options available on the Home screen are described in the following topics.

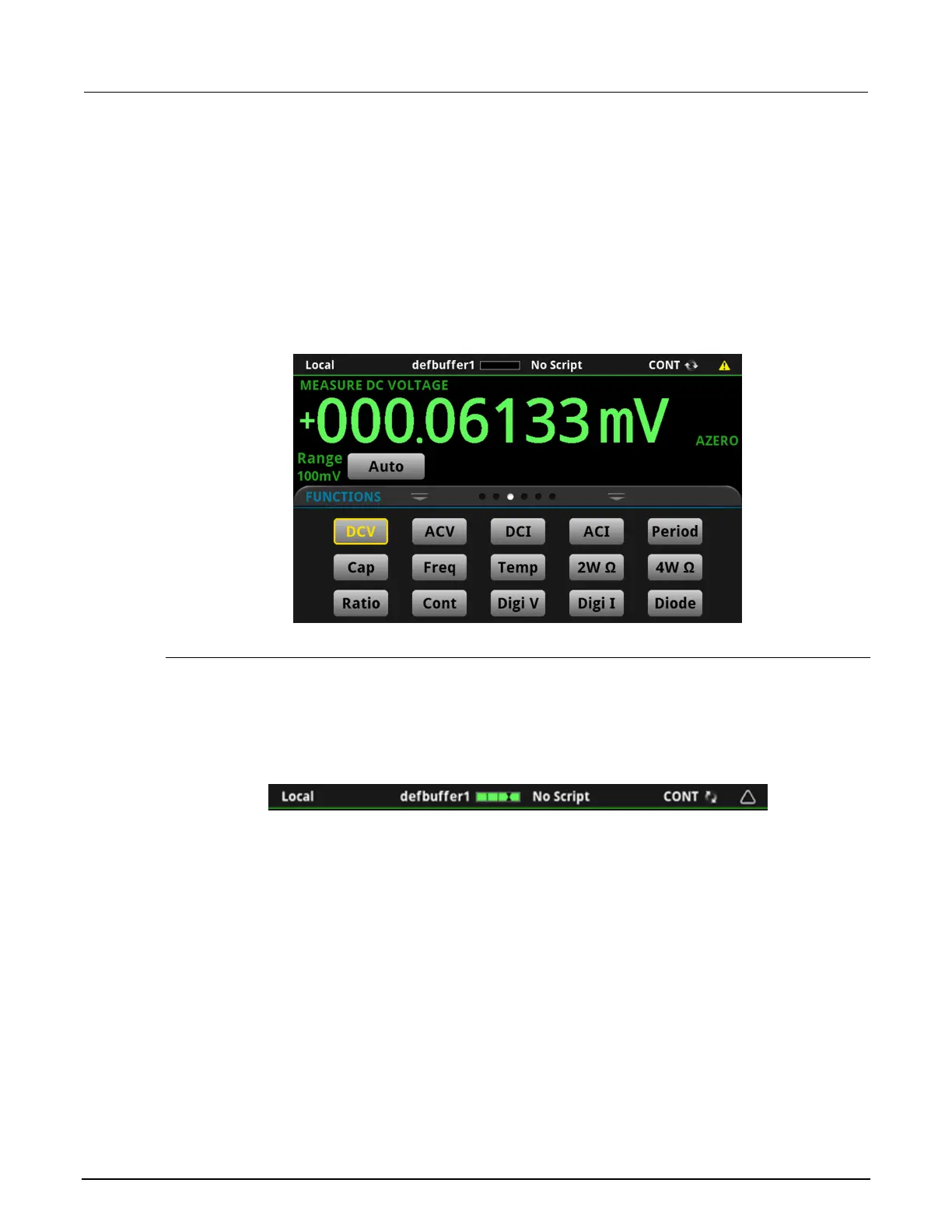

Figure 5: Model DMM7510 home screen
Status and event indicators
The indicators at the top of the Home screen contain information about instrument settings and
states. Some of the indicators also provide access to instrument settings.
Press an indicator to get more information about the present state of the instrument. You can also
select the indicators by turning the navigation control to select an indicator and then pressing ENTER.
Figure 6: Home screen status bar
Communications indicator
The communications indicator displays the type of communications the instrument is using. Press the
indicator to display the present communications settings. Press the Change Settings button at the
bottom of the dialog box to change the settings. Refer to Remote communications interfaces for detail
on the options that are available.
