Dimensions
The following figures show the mounting screw locations and the dimensions of the instrument with
and without the handle and bumpers.
The instrument weighs 4.08 kg (9.0 lb) with the bumpers and handle and 3.63 kg (8.0 lb) without
them.
The following figure shows the mounting screw locations and dimensions. Mounting screws must be
#6-32 with a maximum screw length of 11.12 mm (0.438 in.) or 7/16 in. The dimensions shown are
typical for both sides of the instrument.

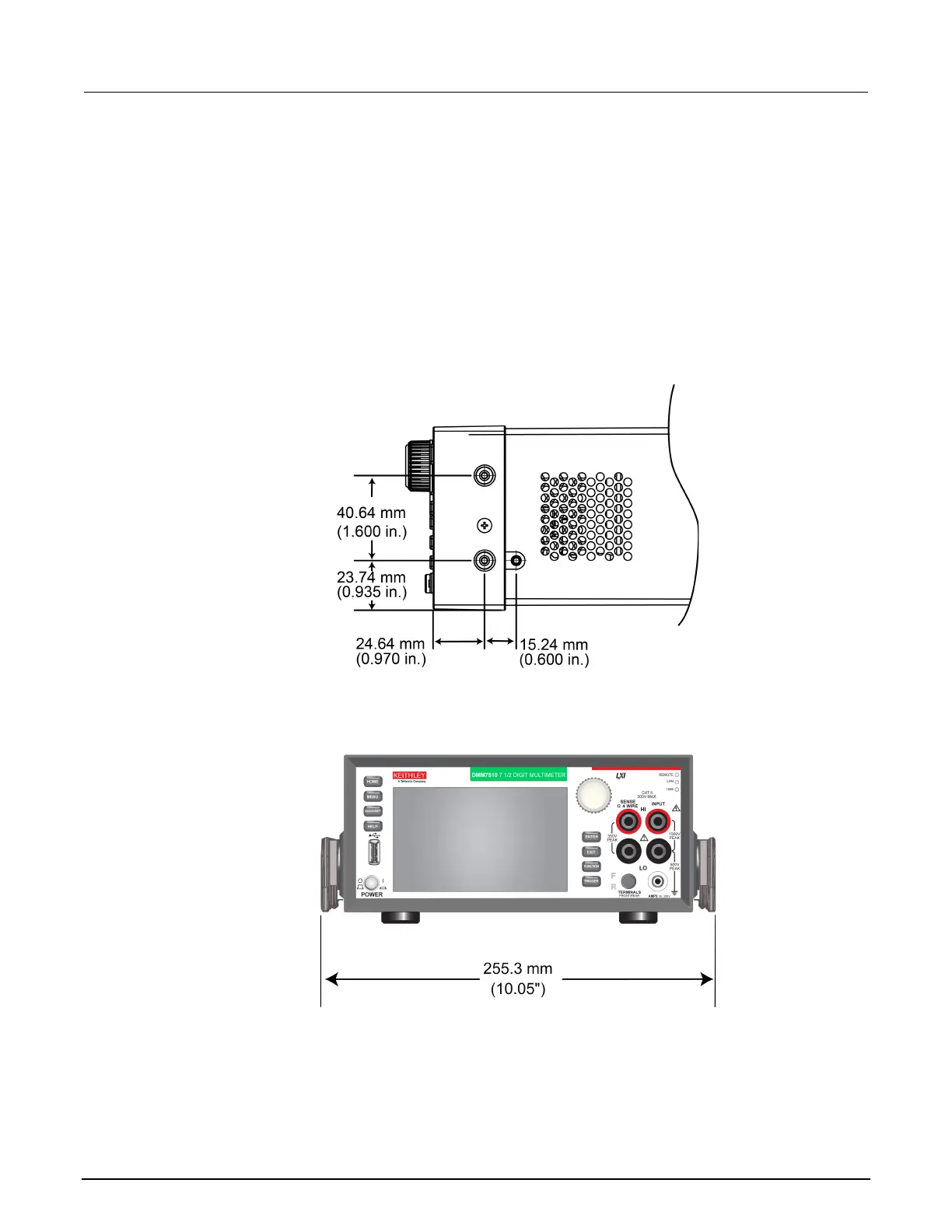

Figure 30: Model DMM7510 mounting screw locations and dimensions
The following figures show the dimensions when the handle and bumpers are installed.
Figure 31: Model DMM7510 dimensions

Keithley DMM7510 Specifications

General

Resolution	7.5 digits
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
DC Current Range	10 µA to 10 A
Resistance Range	10 Ω to 1 GΩ
Sampling Rate	1 MS/s
Memory	27.5 million readings
Display	5 inch capacitive touchscreen
AC Voltage Accuracy	±0.06% of reading
AC Current Range	10 A
Connectivity	USB, LAN, GPIB
