Rear panel overview

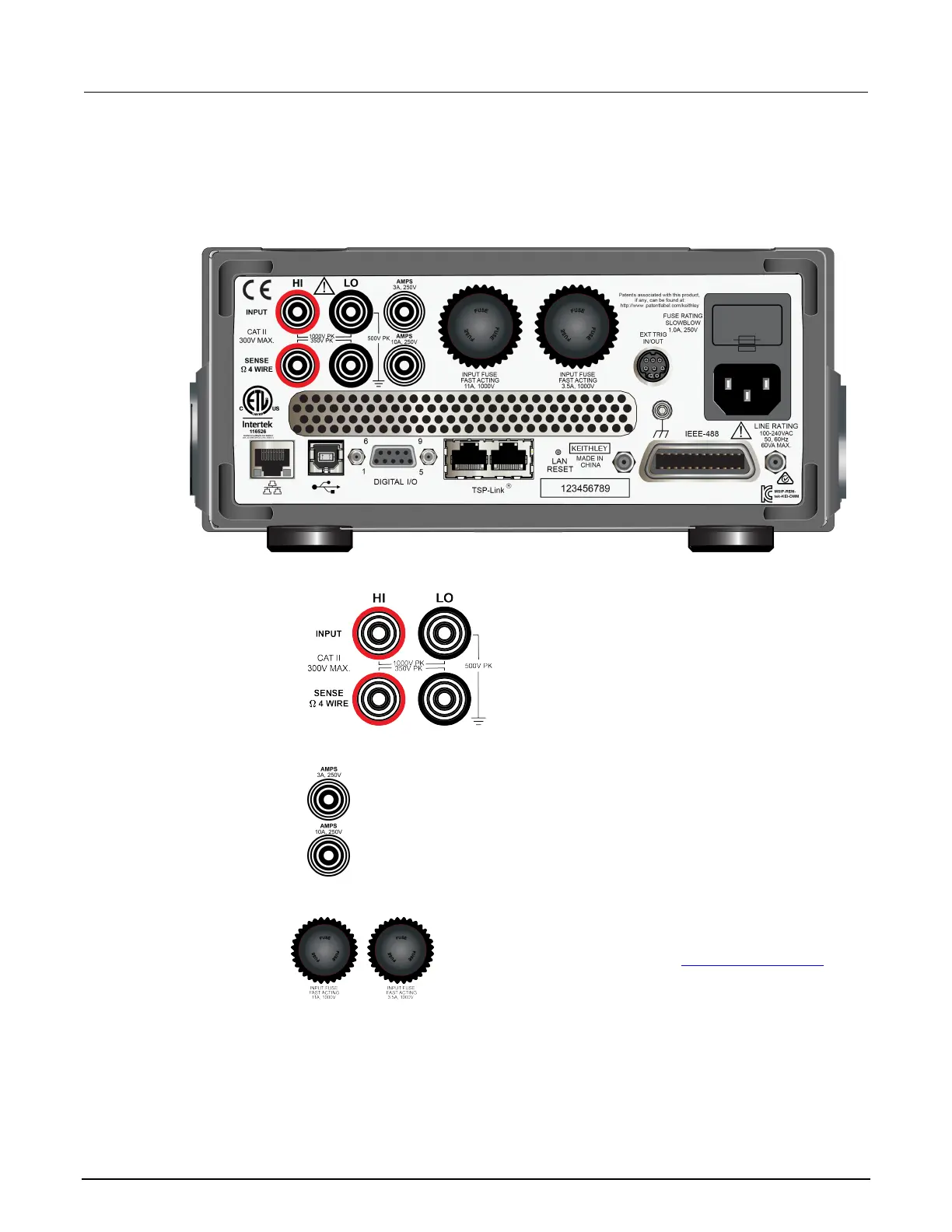

The rear panel of the Model DMM7510 is shown below. Descriptions of the options follow the figure.
Figure 2: Model DMM7510 rear panel
terminals
Use the INPUT HI and INPUT LO terminals for all
measurements except current. For current
measurements, use the 3 A or 10 A AMPS
connection with the INPUT LO terminal.
Use the SENSE HI and SENSE LO terminals and
the INPUT terminals with the 4-wire resistance,
3-wire and 4-wire RTD temperature, and DC voltage
ratio functions.
3 A, 250 V current connector for DC amp and digitize DC current
10 µA to 3 A ranges, and AC current 1 mA to 3 A ranges.
10 A, 250 V current connector for DC current and digitize DC current
10 A range and AC current 10 A range only.
Input
Fuses
Fast-acting current-input fuses.
For continued protection against fire hazard, replace these
fuses with same type and rating. See Input fuse replacement
(on page 2) for details.
