Keithley DMM7510 Reference Manual

Model DMM7510
7½ Digit Graphical Sampling Multimeter Reference Manual Section 3:
Functions and features
DMM7510-901-01 Rev. B / May 2015 3-49
Digital I/O port configuration
The following figure shows the basic configuration of the digital I/O port.
To set a line high (nominally +5 V), write a 1 to it; to set a line low (nominally 0 V), write a 0 to it. To
allow an external device to control the state of the line, the line must be set to input mode or
open-drain mode. An attached device must be able to sink at least 50 µA from each I/O line.

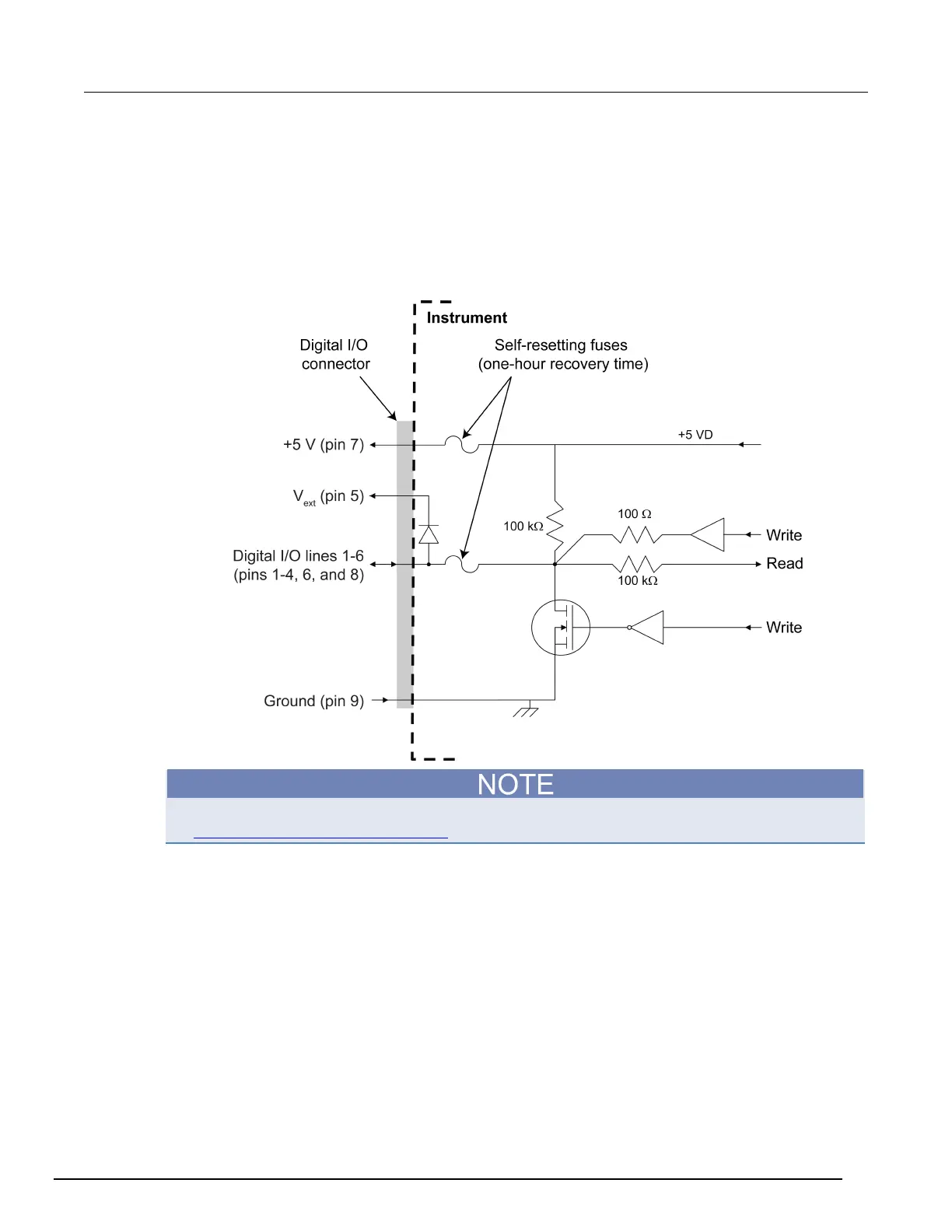

Figure 121: Digital I/O port configuration
For additional details about the digital output, see the Model DMM7510 specifications (available at
the Keithley Instruments support website (http://www.keithley.com/support)).

Keithley DMM7510 Specifications

General

Resolution	7.5 digits
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
DC Current Range	10 µA to 10 A
Resistance Range	10 Ω to 1 GΩ
Sampling Rate	1 MS/s
Memory	27.5 million readings
Display	5 inch capacitive touchscreen
AC Voltage Accuracy	±0.06% of reading
AC Current Range	10 A
Connectivity	USB, LAN, GPIB
