Keithley DMM7510 Reference Manual

Model DMM7510
7½ Digit Graphical Sampling Multimeter Reference Manual Section 2:
General operation
DMM7510-901-01 Rev. B / May 2015 2-99
Setting input impedance using SCPI commands:
Refer to [:SENSe[1]]:<function>:INPutimpedance (on page 6-83).
Setting input impedance using TSP commands:
For the DC voltage function, refer to dmm.measure.inputimpedance (on page 8-156).
For the digitize voltage function, refer to dmm.digitize.inputimpedance (on page 8-91).
AC voltage measurements
This section describes how you can set up AC voltage measurements from the front panel.
Do not apply more than 1000 V
peak
between INPUT HI and LO. Failure to observe this caution may
result in instrument damage.
AC voltage measure connections

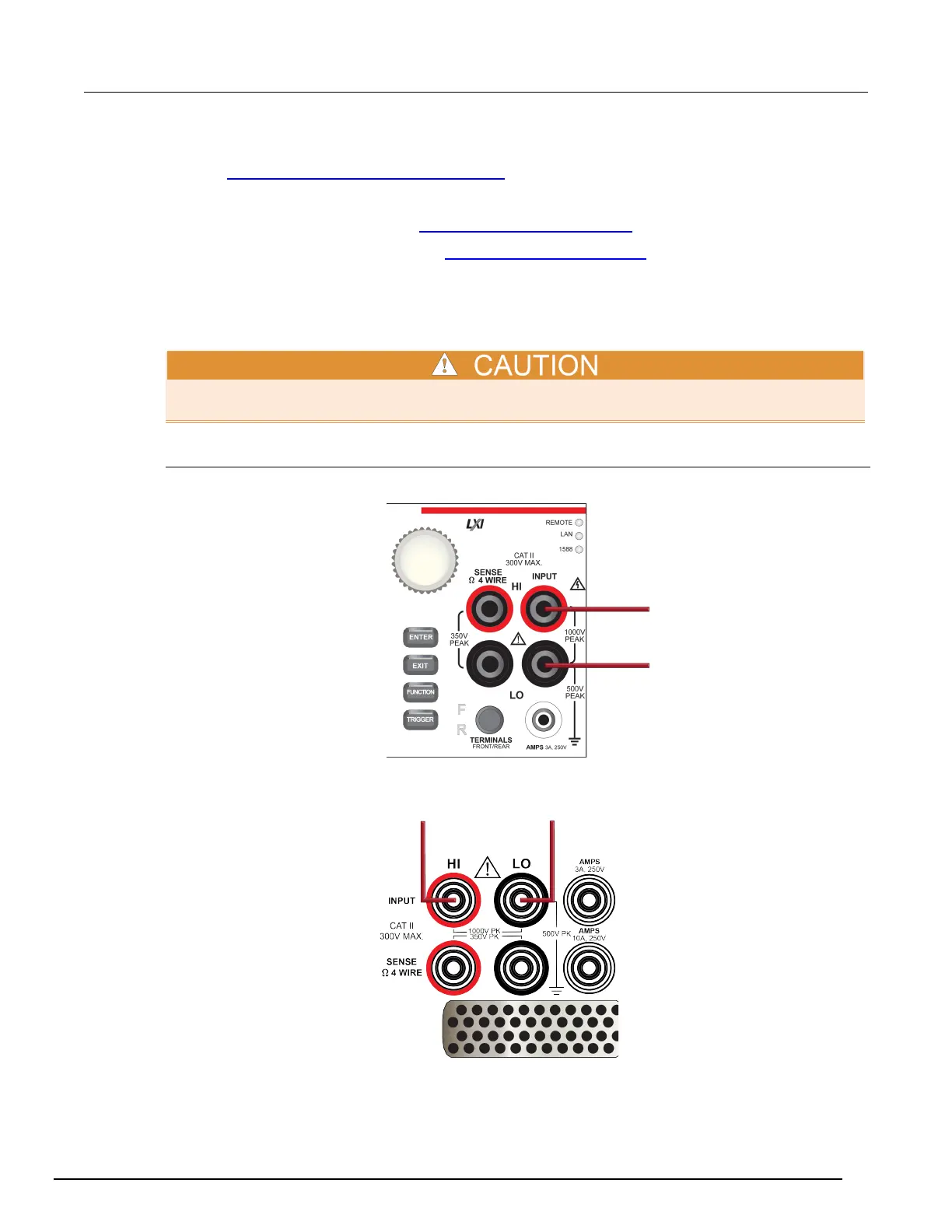

Figure 58: Front panel connections: AC voltage measurement
Figure 59: Rear panel connections: AC voltage measurement

Keithley DMM7510 Specifications

General

Resolution	7.5 digits
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
DC Current Range	10 µA to 10 A
Resistance Range	10 Ω to 1 GΩ
Sampling Rate	1 MS/s
Memory	27.5 million readings
Display	5 inch capacitive touchscreen
AC Voltage Accuracy	±0.06% of reading
AC Current Range	10 A
Connectivity	USB, LAN, GPIB
