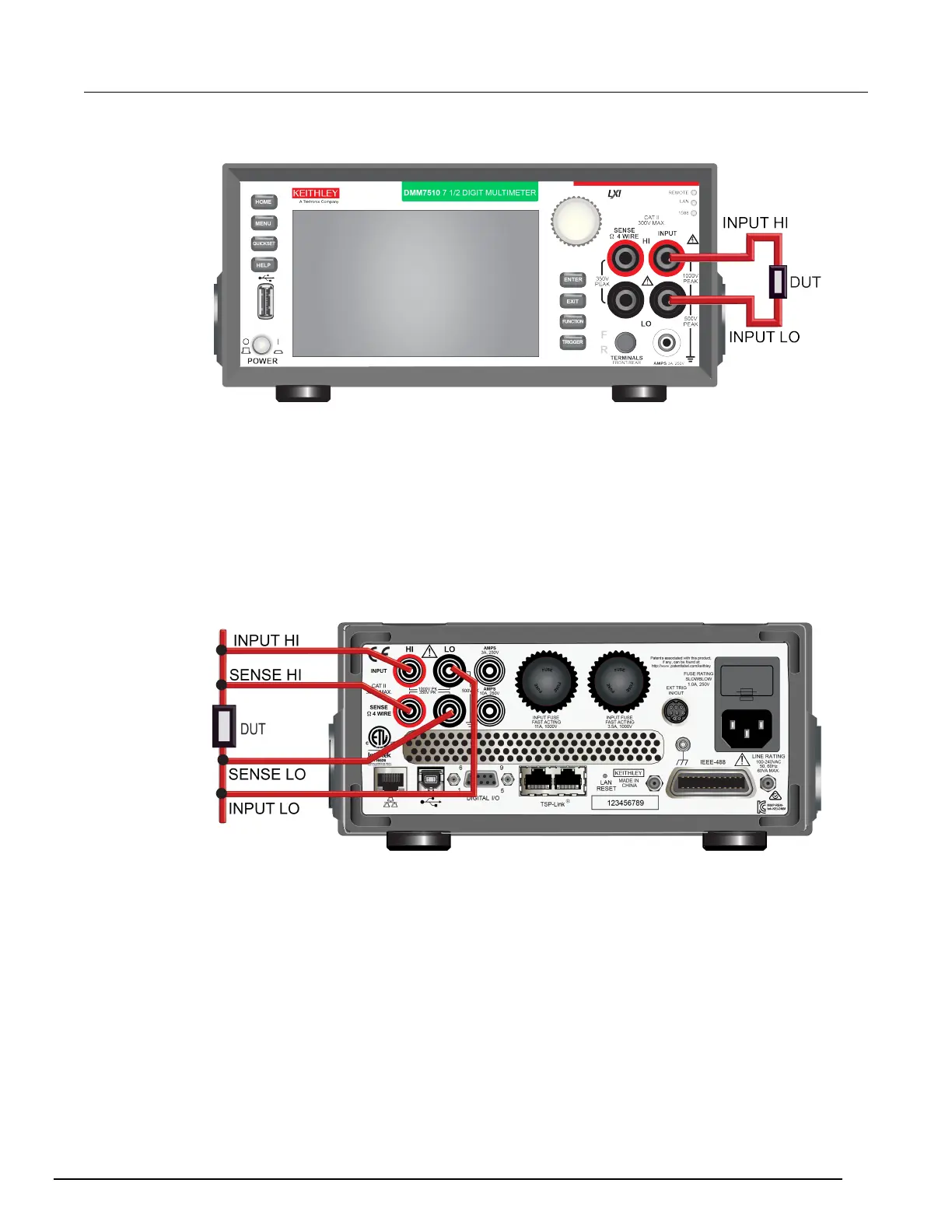

Figure 69: Two-wire DUT connections to the front panel
Four-wire remote sense connections
Using 4-wire remote sense connections provides the most accurate low resistance measurement
accuracy. Specified accuracies for instrument measurement capabilities are only guaranteed when
you use 4-wire remote sensing.
Four-wire connections are shown in the following figures.
Four-wire remote sense connection drawings
Always connect the sense lines as close as possible to the device under test.
Figure 70: Model DMM7510 rear-panel 4-wire remote sense connections

Keithley DMM7510 Specifications

General

Resolution	7.5 digits
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
DC Current Range	10 µA to 10 A
Resistance Range	10 Ω to 1 GΩ
Sampling Rate	1 MS/s
Memory	27.5 million readings
Display	5 inch capacitive touchscreen
AC Voltage Accuracy	±0.06% of reading
AC Current Range	10 A
Connectivity	USB, LAN, GPIB
