Period measure connections

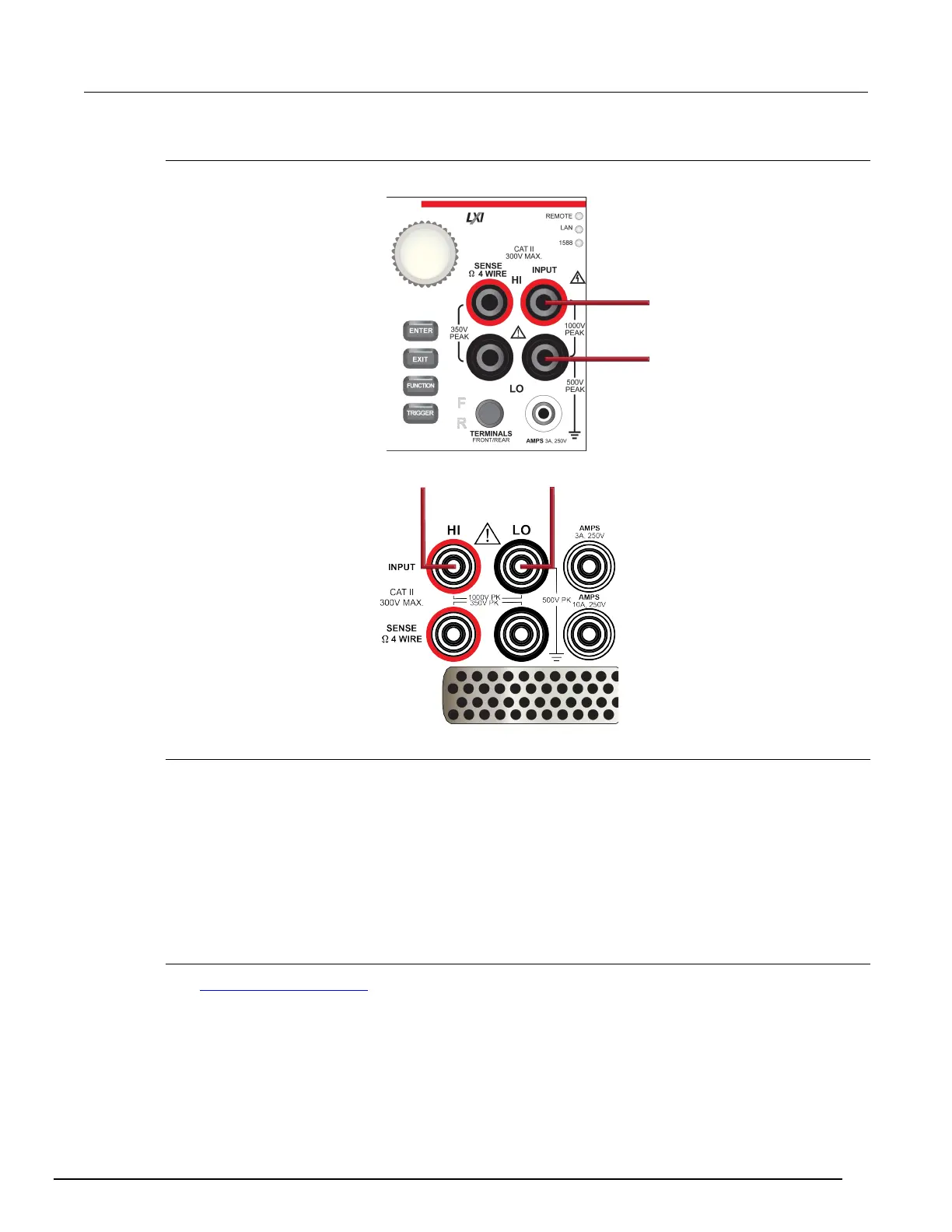

Figure 80: Front panel connections: Period measurement
Figure 81: Rear panel connections: Period measurement
Measure the period using the front panel
To make a period measurement using the front panel:
1. Make the connections as shown in the previous figures.
2. Press the FUNCTION key.
3. Select Period.
4. Press the TRIGGER key for 2 seconds and verify that the instrument is set to Continuous
Measurement.
The measurements start displaying on the front panel.
Settings available for period measurements
See Period measure settings (on page 2-30) for settings that are available when you are making
Period measurements.
