Keithley DMM7510 Reference Manual

Section
4: Measure considerations Model DMM7510 7½ Digit Graphical Sampling Multimeter
Reference Manual
4-6 DMM7510-901-01 Rev. B / May 2015
Because I = V/R, Equation 1 is modified using the V/R equivalents in place of I
REF
and I
DUT
. Therefore:
I
SOUR
= (V
MEAS
/ R
REF
) + (V
MEAS
/ R
DUT
)
Note that V
MEAS
is measured by the Model DMM7510. With V
MEAS
, I
SOUR
, R
REF
known, the Model
DMM7510 calculates the resistance of the DUT and displays the result. R
REF
is learned during
calibration and V
SOUR
is routinely self-calibrated when autozero is enabled.
As shown, the 4-wire ohm function can also be used to measure ohms for the 10 MΩ and 100 MΩ
ranges. To minimize the effects of charge injection when autozero is enabled, the 10 MΩ to 100 MΩ
is actually a 3-wire ohm measurement. SENSE HI is not used (it can be left open). The measurement
method is similar to the ratiometric method for 2-wire ohms, but it performs an extra voltage
measurement (V
LEAD
) to compensate for voltage drop in the input test leads.
Note that V
MEAS
includes the voltage drops of the input test leads (Input HI and Input LO). Therefore,
the actual voltage drop across the DUT is V
MEAS
minus the two voltage drops in the test leads.
Because matched inputs are used, the voltage drop is 2 x V
LEAD
. Therefore:
V
DUT
= V
MEAS
- 2(V
LEAD
)

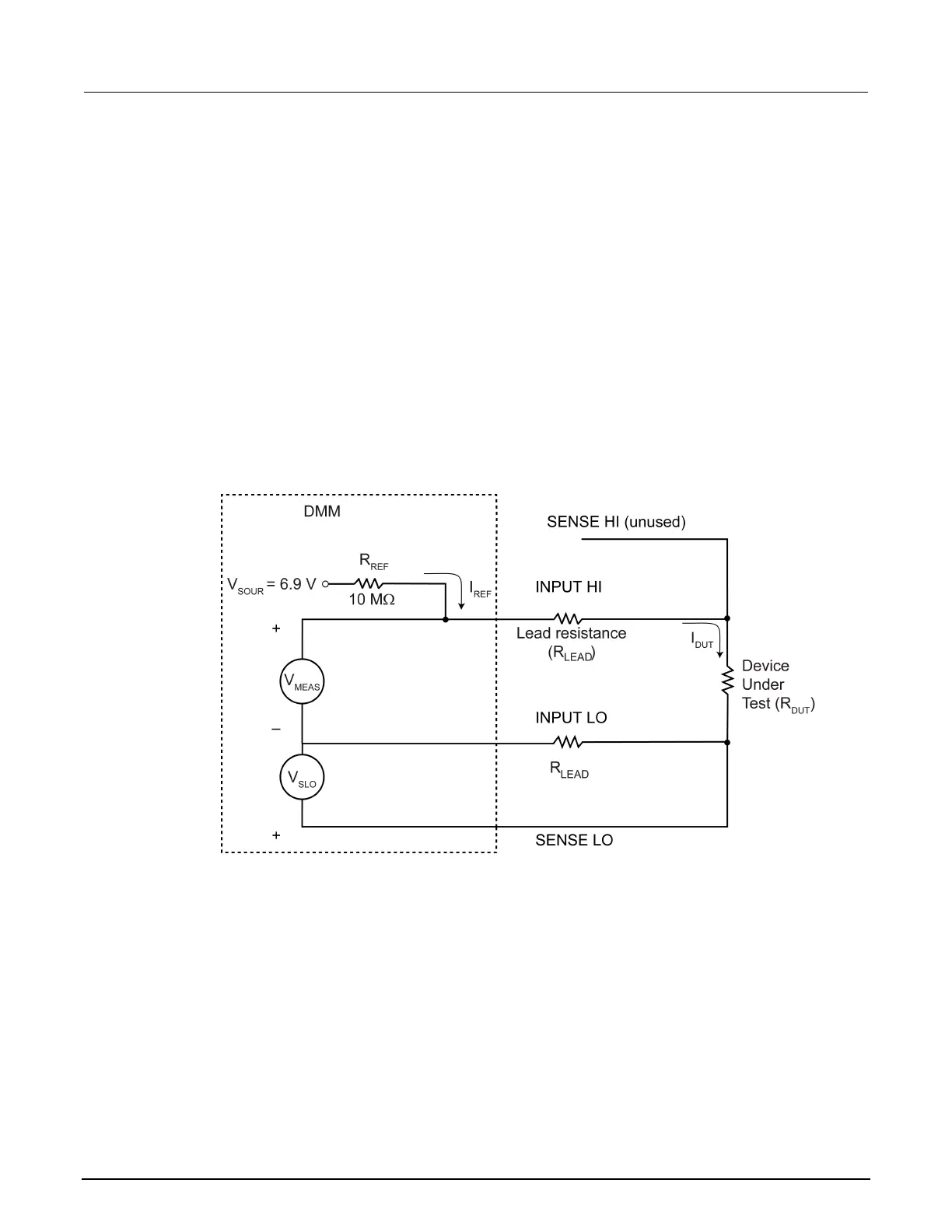

Figure 137: 4-wire ratiometric resistance measurement method

Keithley DMM7510 Specifications

General

Resolution	7.5 digits
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
DC Current Range	10 µA to 10 A
Resistance Range	10 Ω to 1 GΩ
Sampling Rate	1 MS/s
Memory	27.5 million readings
Display	5 inch capacitive touchscreen
AC Voltage Accuracy	±0.06% of reading
AC Current Range	10 A
Connectivity	USB, LAN, GPIB
