Keithley DMM7510 Reference Manual

Section
2: General operation Model DMM7510 7½ Digit Graphical Sampling Multimeter
Reference Manual
2-46 DMM7510-901-01 Rev. B / May 2015
Trigger Configure menu
The Configure menu allows you to see and modify the structure and
parameters of a trigger model. You can also monitor trigger model operation.

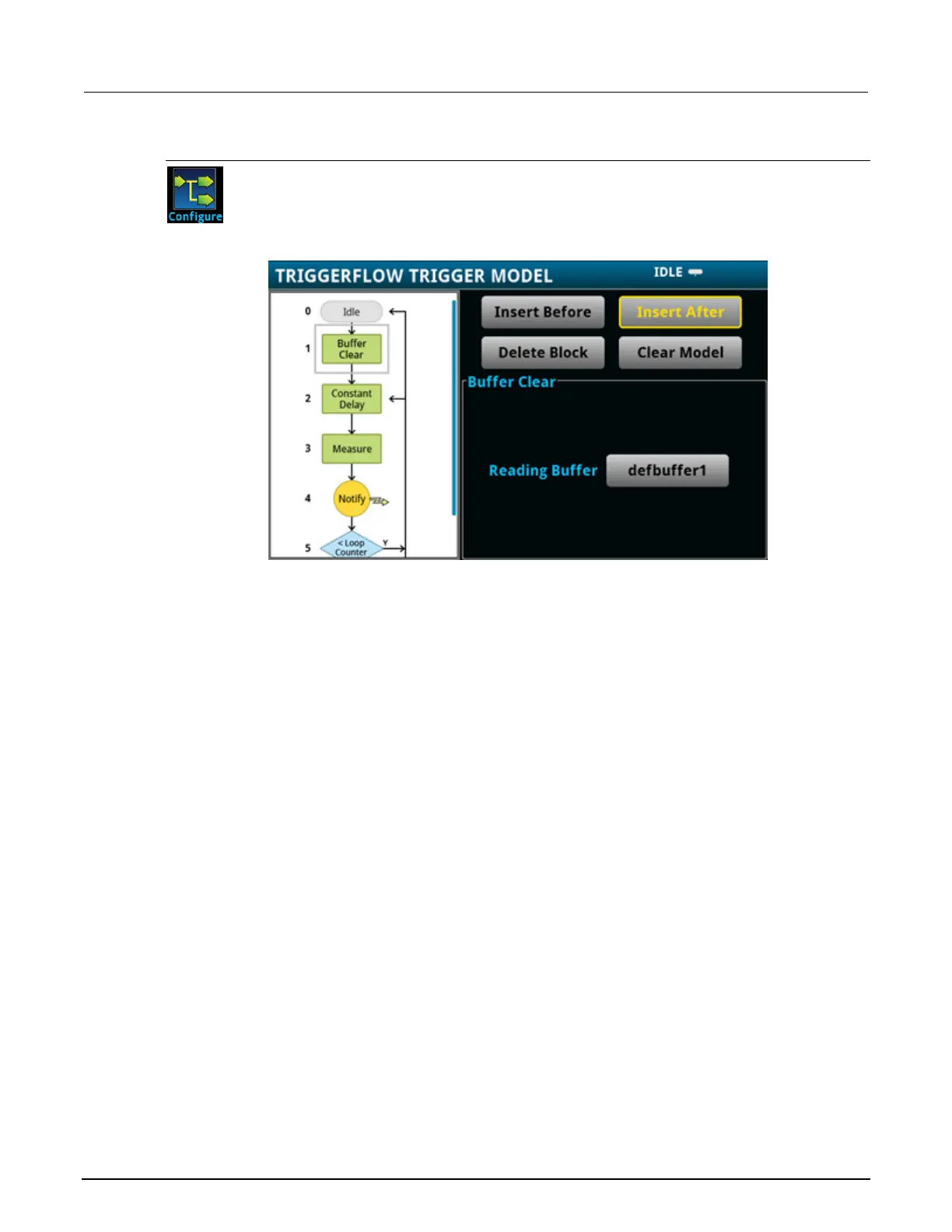

Figure 24: TRIGGERFLOW TRIGGER MODEL screen
To see the parameters that you can change from the front panel, select a block in the trigger model
diagram. The available options change depending on the type of block you select.
From this screen, you can:
• Insert a new trigger block before or after the selected block
• Choose among several block types to add
• Edit an existing block
• Delete an existing block
• Remove all trigger blocks by selecting Clear Model
When you finish your changes to the trigger model, you can initiate the trigger model by pressing the
front-panel TRIGGER key.

Keithley DMM7510 Specifications

General

Resolution	7.5 digits
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
DC Current Range	10 µA to 10 A
Resistance Range	10 Ω to 1 GΩ
Sampling Rate	1 MS/s
Memory	27.5 million readings
Display	5 inch capacitive touchscreen
AC Voltage Accuracy	±0.06% of reading
AC Current Range	10 A
Connectivity	USB, LAN, GPIB
