7½ Digit Graphical Sampling Multimeter Reference Manual Section 2:
DMM7510-901-01 Rev. B / May 2015 2-63
To remove the bumpers:
1. Swivel the handle to a position above or below the instrument so that it will not interfere with the
removal of the front bumper.
2. Grasp the front bumper on each side of the Model DMM7510 and gently pull it toward you until
the bumper comes off the instrument.

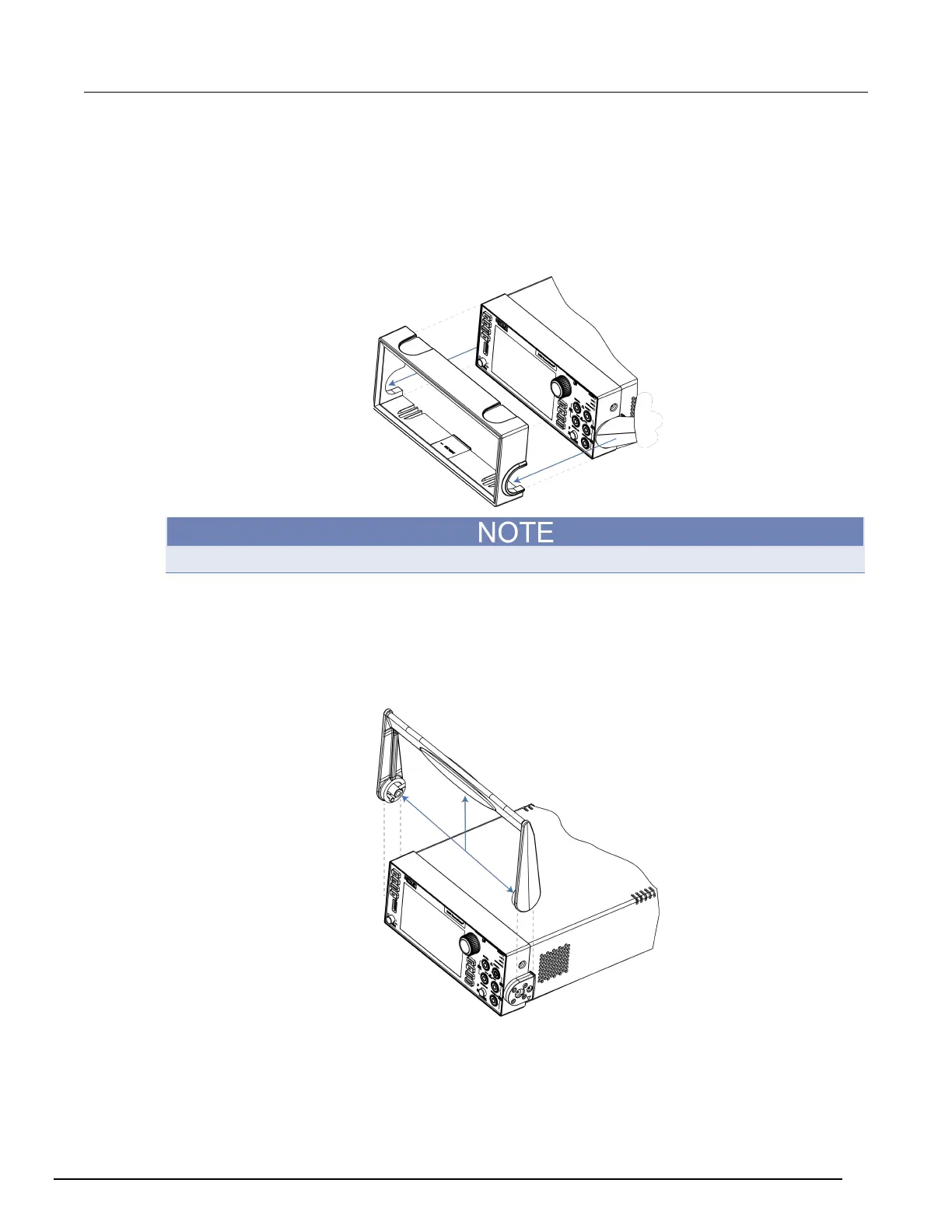

Figure 35: Removing the front bumper
Remove all connections to the rear panel of the Model DMM7510 before removing the rear bumper.
3. To remove the rear bumper, repeat the procedure in step 2.
To remove the handle assembly:
1. Grasp the sides of the handle near where it attaches to the instrument on both sides and gently
pull the handle ends apart to widen the handle as you slide it over the instrument case.
Figure 36: Removing the handle
2. Using a Phillips screwdriver, loosen and remove the two screws holding the handle-mount
assembly to one side of the Model DMM7510. The handle-mount assembly will fall away from the
instrument chassis when the screws are removed.
