Ricoh Aficio MP C3501

Punch Kit PU3000 (B807)
D086/D087 2-76 SM
5. Timing belt cover [F].

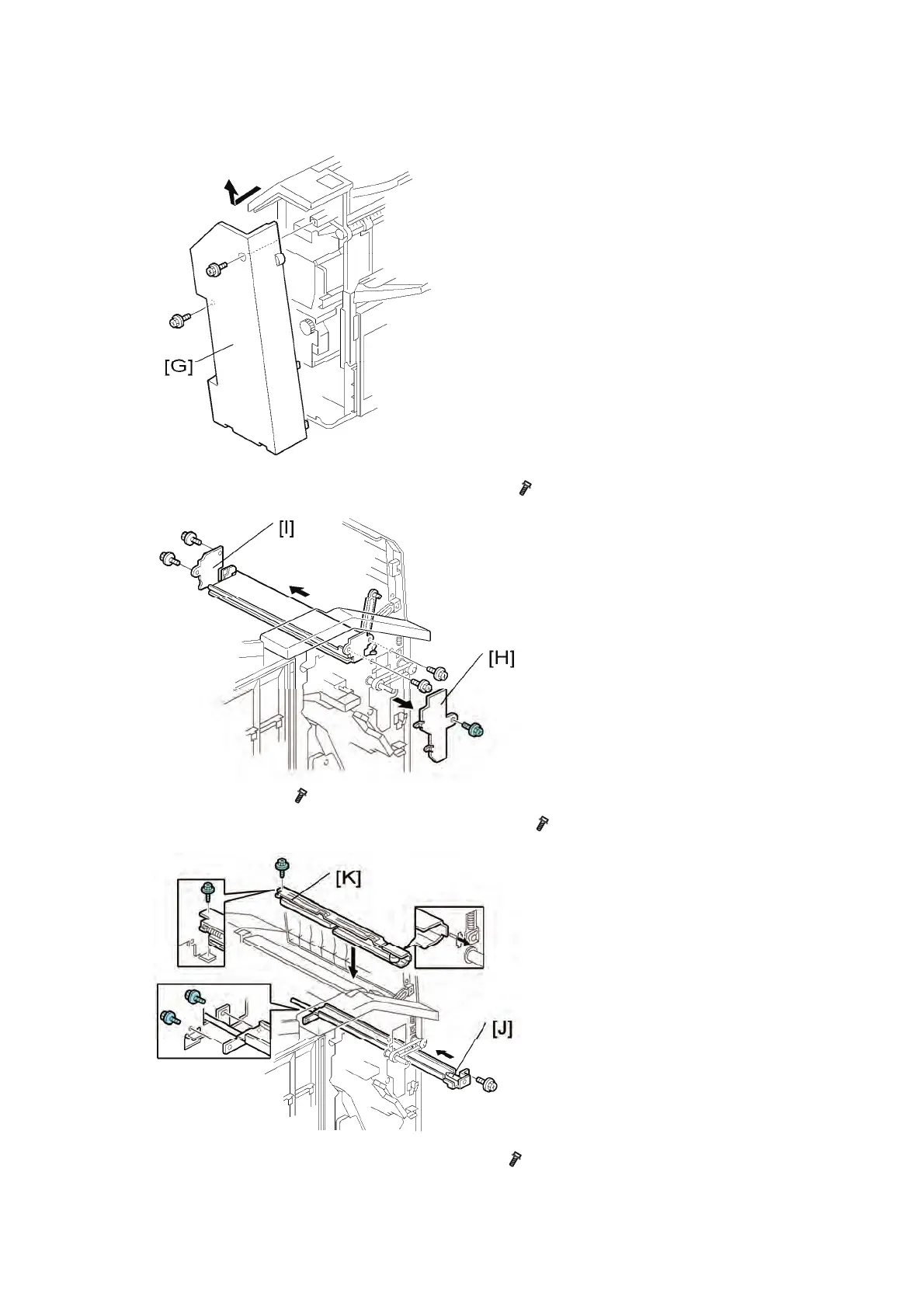

6. Rear cover of the 1000-sheet booklet finisher [G] (
x 2).
7. Cover bracket [H] (
x 1)
8. Remove the paper guide plate [I] from the rear side (
x 4).
9. Install the punch unit stay [J] from the front side (
x 3).
