Ricoh Aficio MP C3501

Punch Kit PU3000 (B807)
D086/D087 2-78 SM

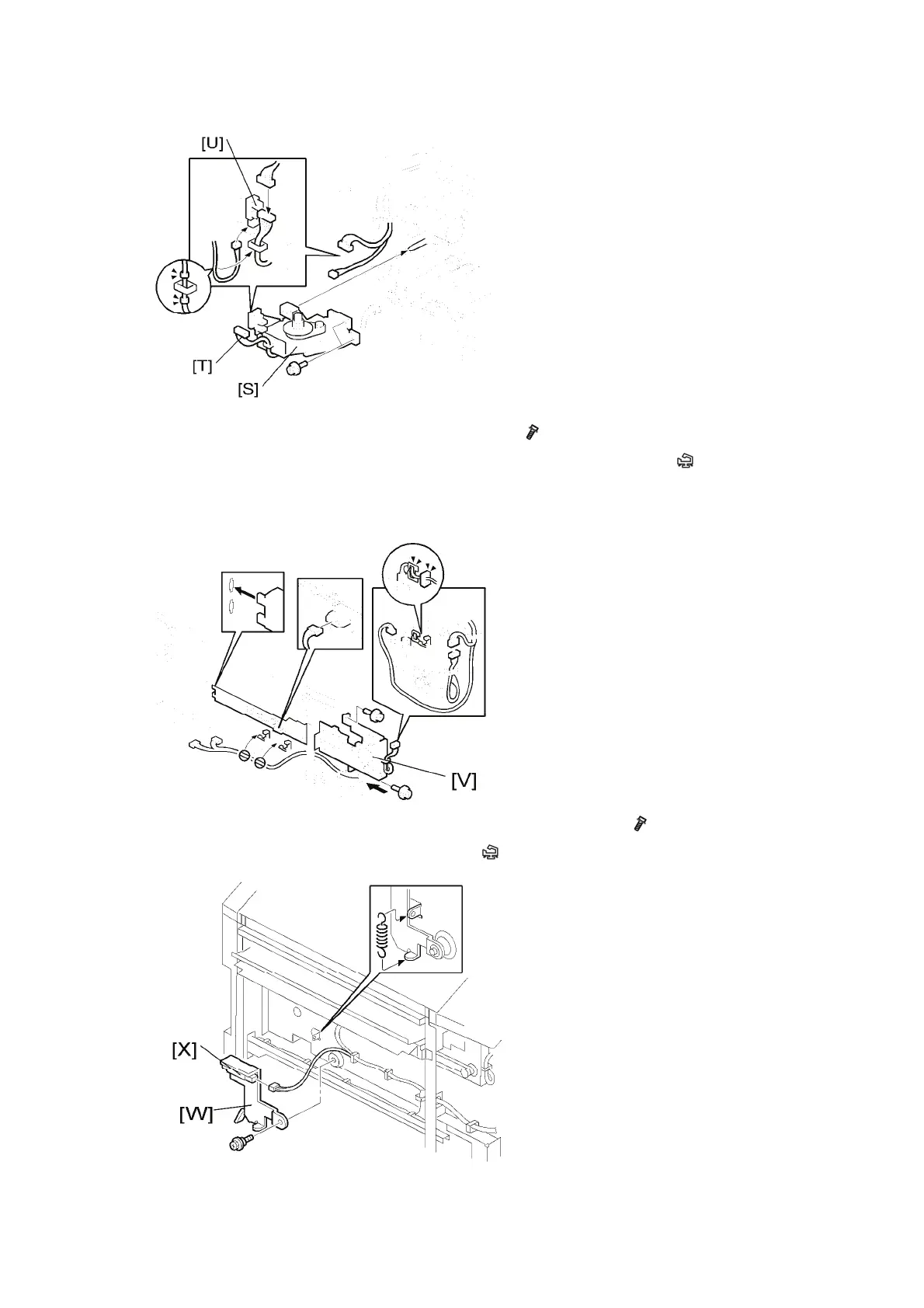

16. Install the punch drive motor [S] on the rear frame ( x 2).
17. Connect the drive motor harness [T] to the harness from the punch unit (
x 1).
18. Connect the home position sensor harness from the punch unit to the home position
sensor [U].
19. Install the sub-scan registration sensor unit [V] from the rear side (
x 2).
20. Route and connect the harnesses as shown (
x 2).
