Ricoh Aficio MP C3501

Punch Unit
B793 60 SM

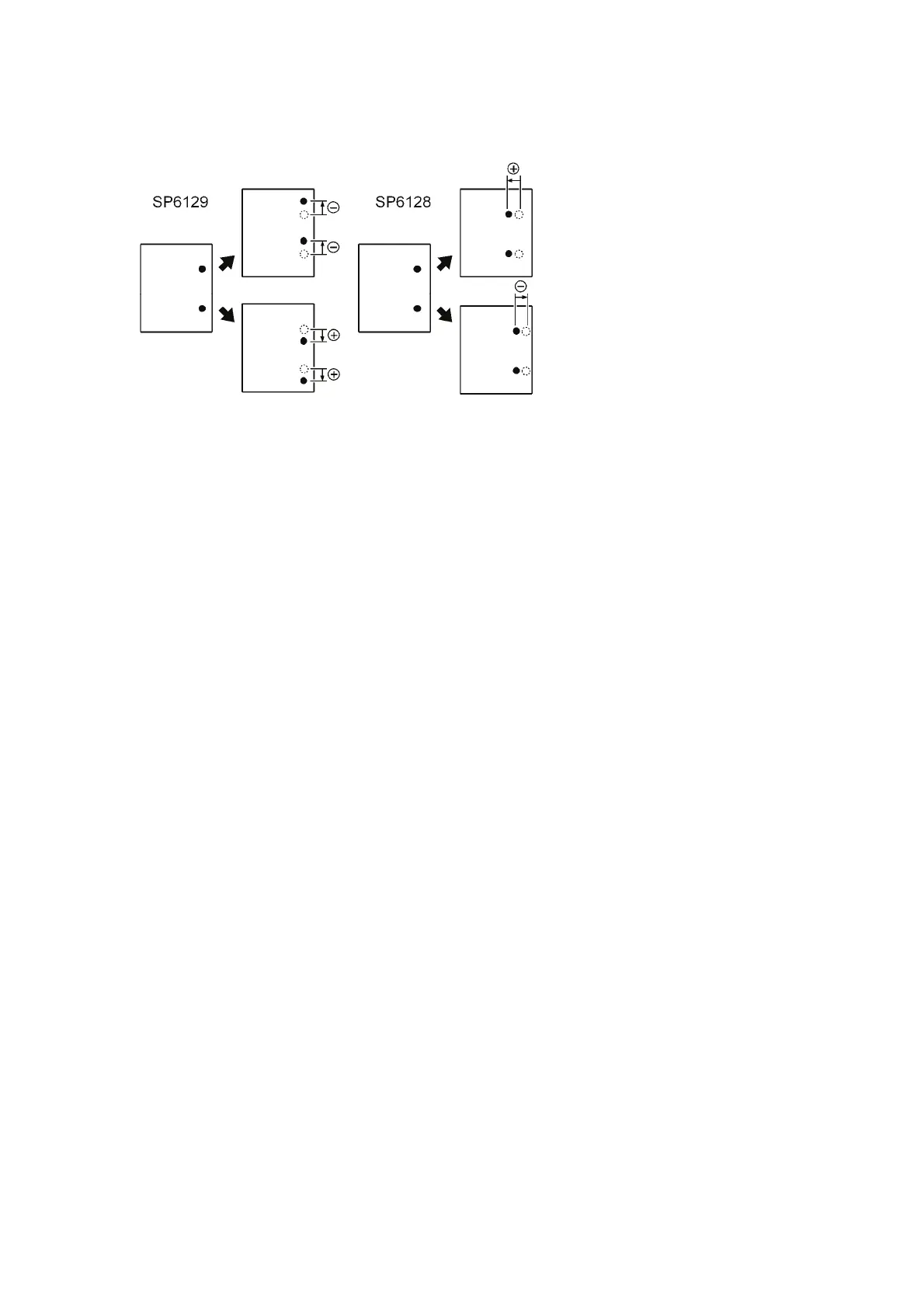

These SP codes adjust the punch hole alignment:
 SP6128 Adjusts the punch positions in the direction of paper feed.
 SP6129 Adjusts the punch position perpendicular to the direction of feed.
For more, see Section "5. Service Tables".
