Fax Unit Options
SM 13 D545
Fax option
Type C5501
D545

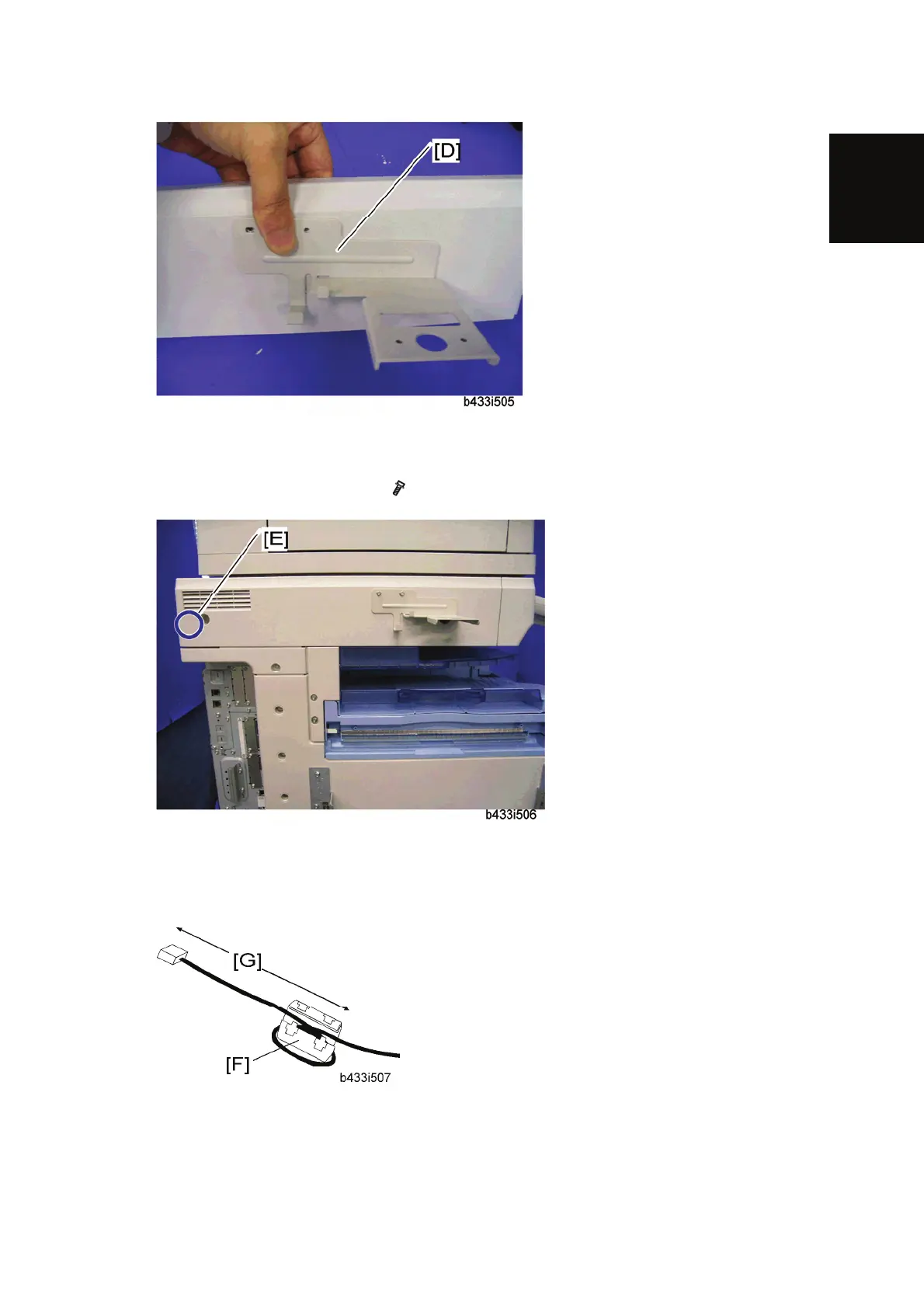

4. Hold the handset bracket [D] and handset support bracket (set inside the scanner left
cover).
5. Secure the handset bracket [D] (
x 2).
6. Install the scanner left cover on the machine.
7. Attach the clamp to the location [E].
8. Set the handset on the handset bracket.
9. Put the ferrite core [F] on the handset cord as shown. The length [G] must be 90 mm.
10. Clamp the hand set cord.
11. Connect the handset cable to the "TEL" jack at the rear of the machine.
