Ricoh Aficio MP C3501

Drive Unit
D086/D087 4-80 SM

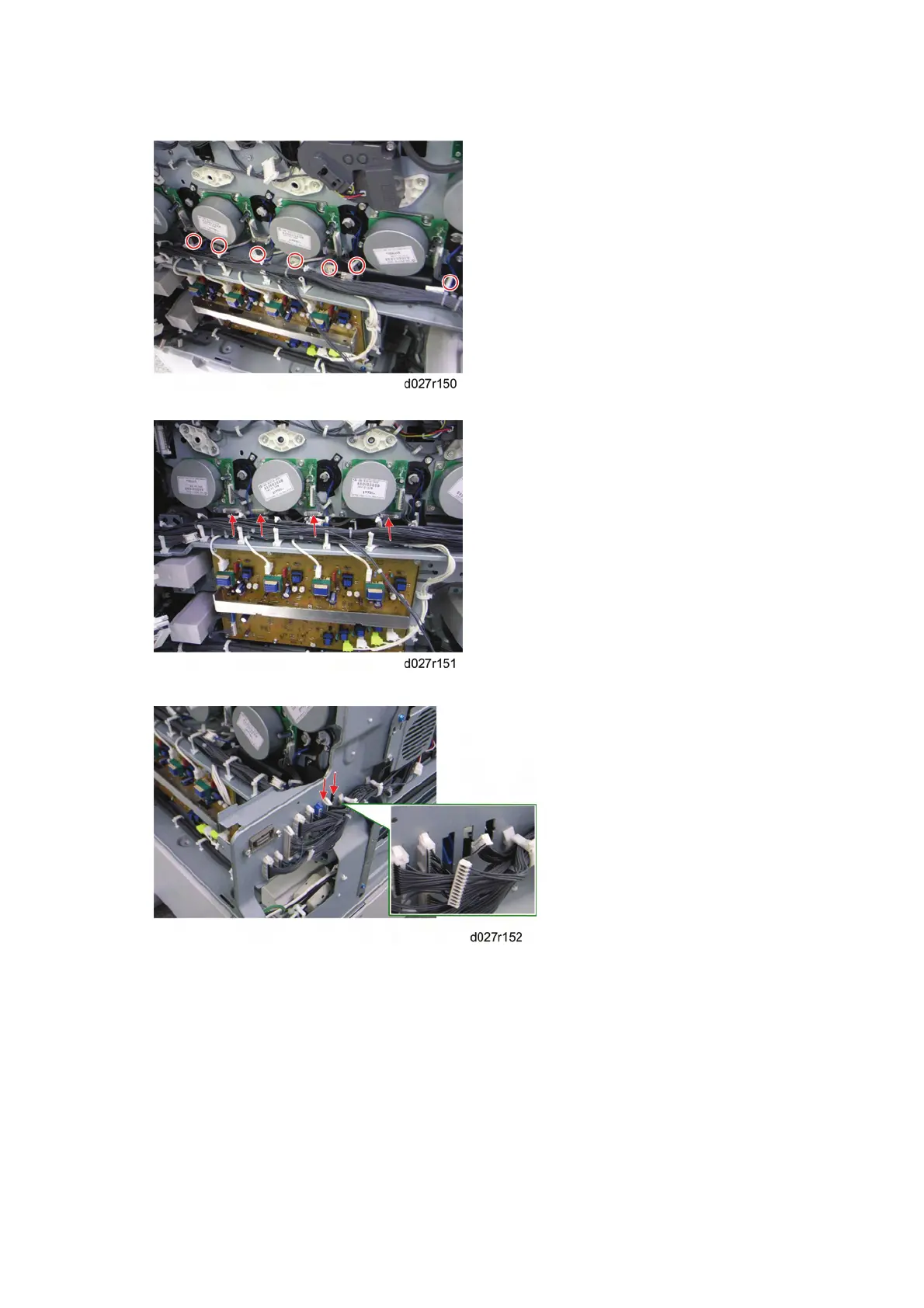

10. Remove ten clamps (blue arrows).
11. Release seven clamps and turn each harness aside.
12. Disconnect four connectors (red arrows).
13. Disconnect two connectors (red arrows) and put these harnesses inside the machine.
