Ricoh Aficio MP C3501

Drive Unit
SM 4-81 D086/D087
Replacement
and
Adjustment

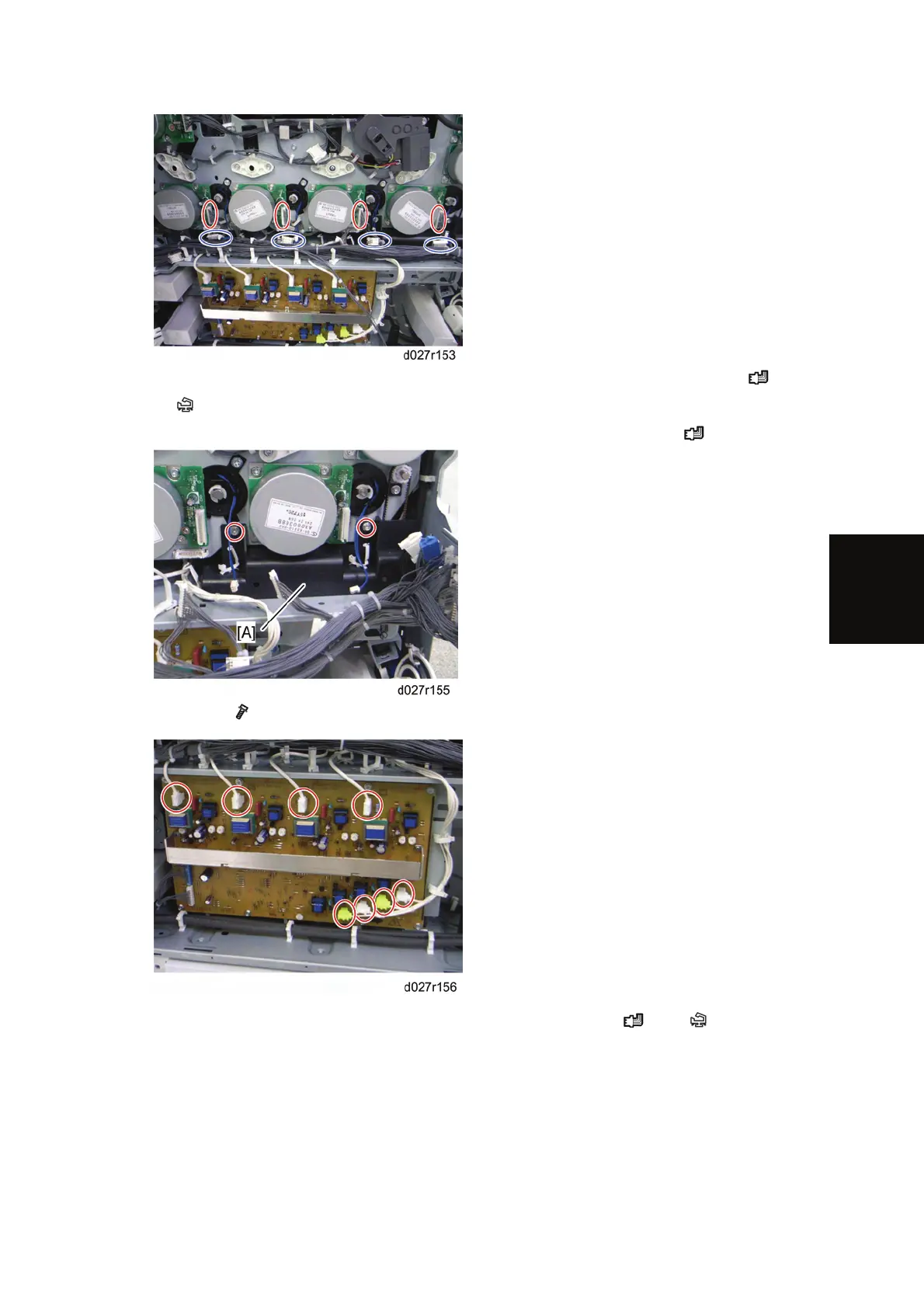

14. Disconnect each connector (red circles) from the drum/development drive motors (
x
1,
x 1 each).
15. Disconnect each connector (blue circles) from the development clutches (
x 1 each).
16. Cover [A] (
x 2)
17. Disconnect eight connectors from the high voltage supply board ( x 8, x 2).
