Energy Save
SM 7-1 D086/D087
Trouble-
shooting
7. ENERGY SAVING
7.1 ENERGY SAVE
7.1.1 ENERGY SAVER MODES
Customers should use energy saver modes properly, to save energy and protect the
environment.

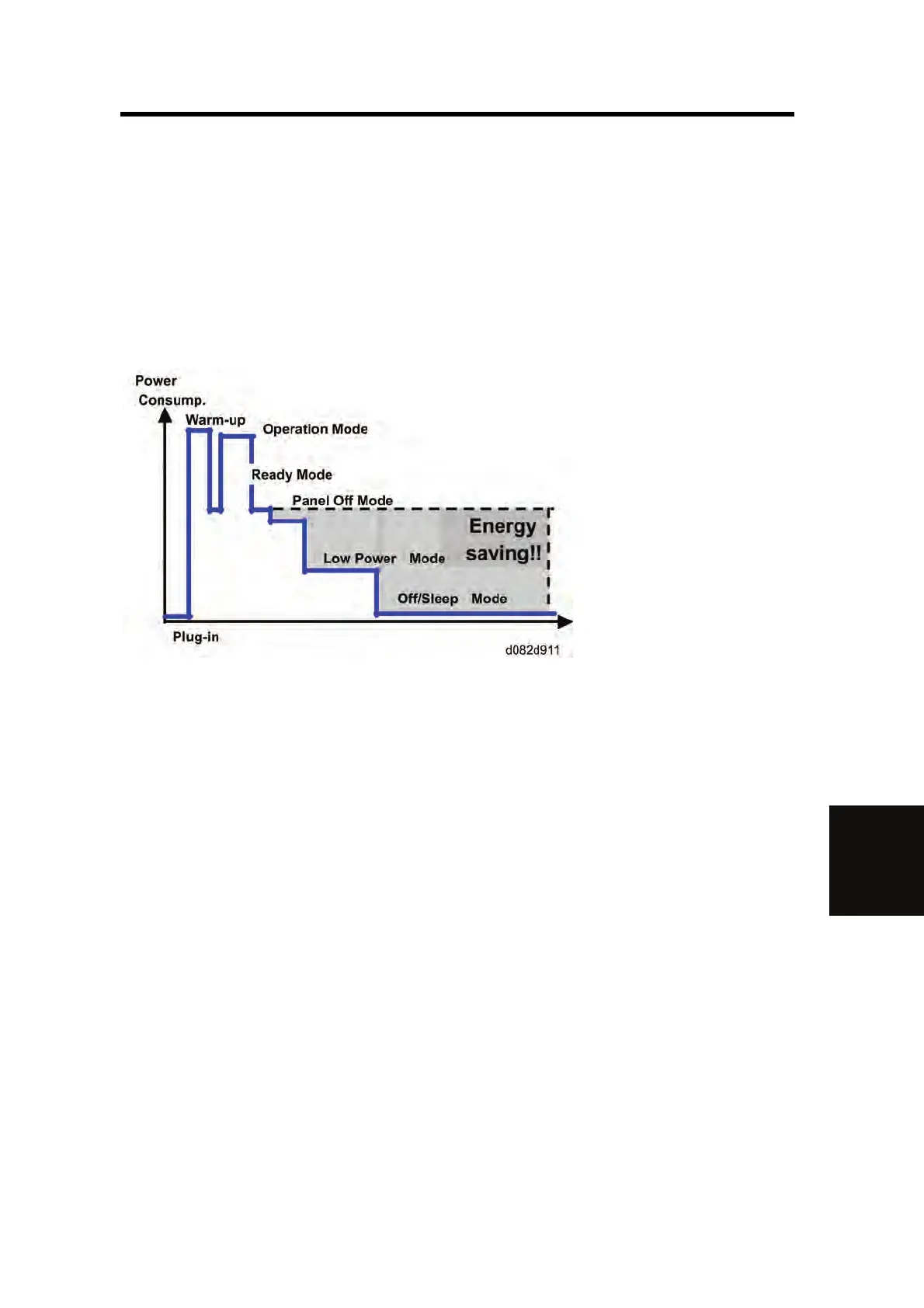

The area shaded grey in this diagram represents the amount of energy that is saved when
the timers are at the default settings. If the timers are changed, then the energy saved will be
different. For example, if the timers are all set to 240 min., the grey area will disappear, and
no energy is saved before 240 min. expires.
Timer Settings
The user can set these timers with User Tools (System settings > Timer setting)
Panel off timer (10 sec – 240 min): Panel Off Mode. Default setting: 60 sec.
Energy saver timer (1 – 240 min): Low Power Mode. Default setting: 15 min.
Auto off timer (1 – 240 min): Off/Sleep Mode. Default setting: 30 min.
Normally, Panel Off timer < Energy Saver timer < Auto Off timer. But, for example, if Auto Off
timer < or = Panel Off timer and Energy Saver timer, the machine goes immediately to Off
mode when the Auto Off timer expires. It skips the Panel Off and Energy Saver modes.
Example
Panel off: 1 min.
Low power: 15 min.
Auto Off: 1 min.
The machine goes to Off mode after 1 minute. Panel Off and Low Power modes are not
used.
