Ricoh Aficio MP C3501

ADF Handle Type B (D366)
SM 2-47 D086/D087
Installation

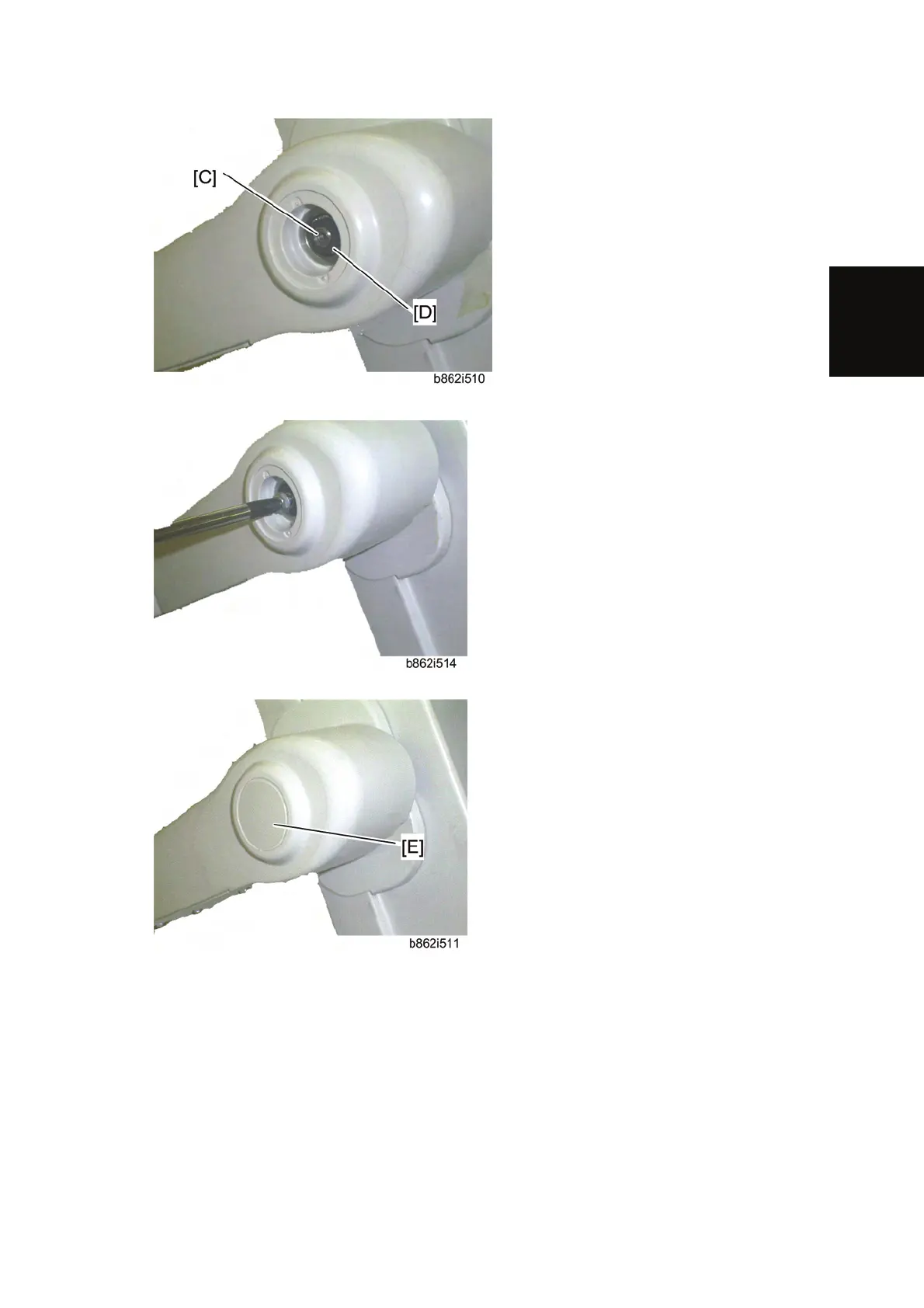

4. In the outside of the handle unit, install the bushing - M6 [C] first, and then the spacer [D].
5. Secure the handle unit with a screw ( x 1: M3x8).
6. Clean the handle unit with alcohol. Then attach the stud decal [E] at the location that was
cleaned.
