ADF Handle Type B (D366)
D086/D087 2-48 SM

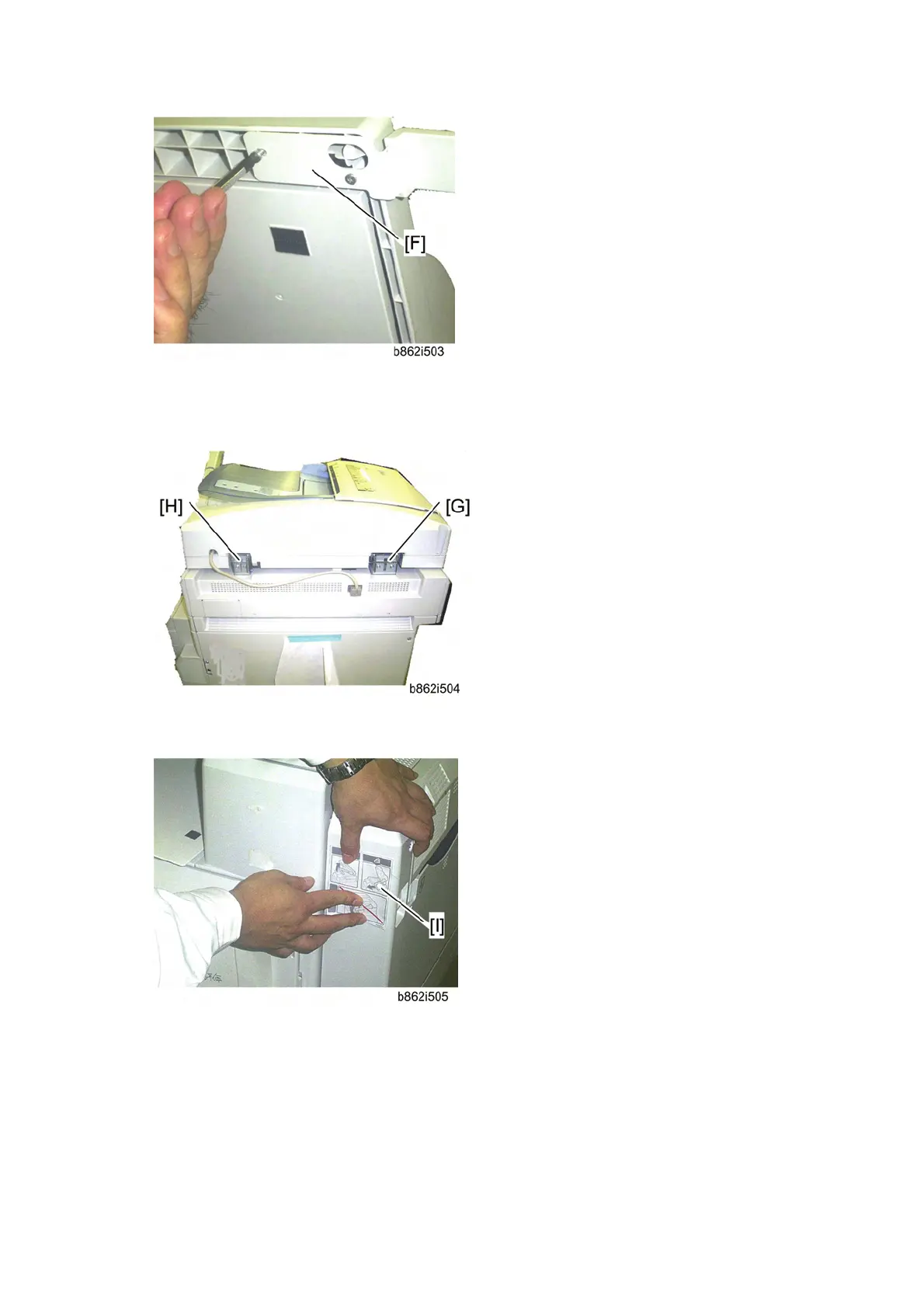

7. Attach the handle bracket [F] at the front right side on the bottom of the ADF unit
(Tapping Screw [Self Binding] x 2: M3x12).
8. Close the ADF unit.
9. Attach the hinge stoppers (left [G] and right [H]) to the left and right hinges (Tapping
screw x 2: M4x8 each).
10. Clean the front side of the duplex unit with alcohol. Then attach the operation decal [I] at
the location that was cleaned.
