Working in manual mode
3.6 Simple stock removal of workpiece
Turning
112 Operating Manual, 03/2013, 6FC5398-8CP40-3BA1

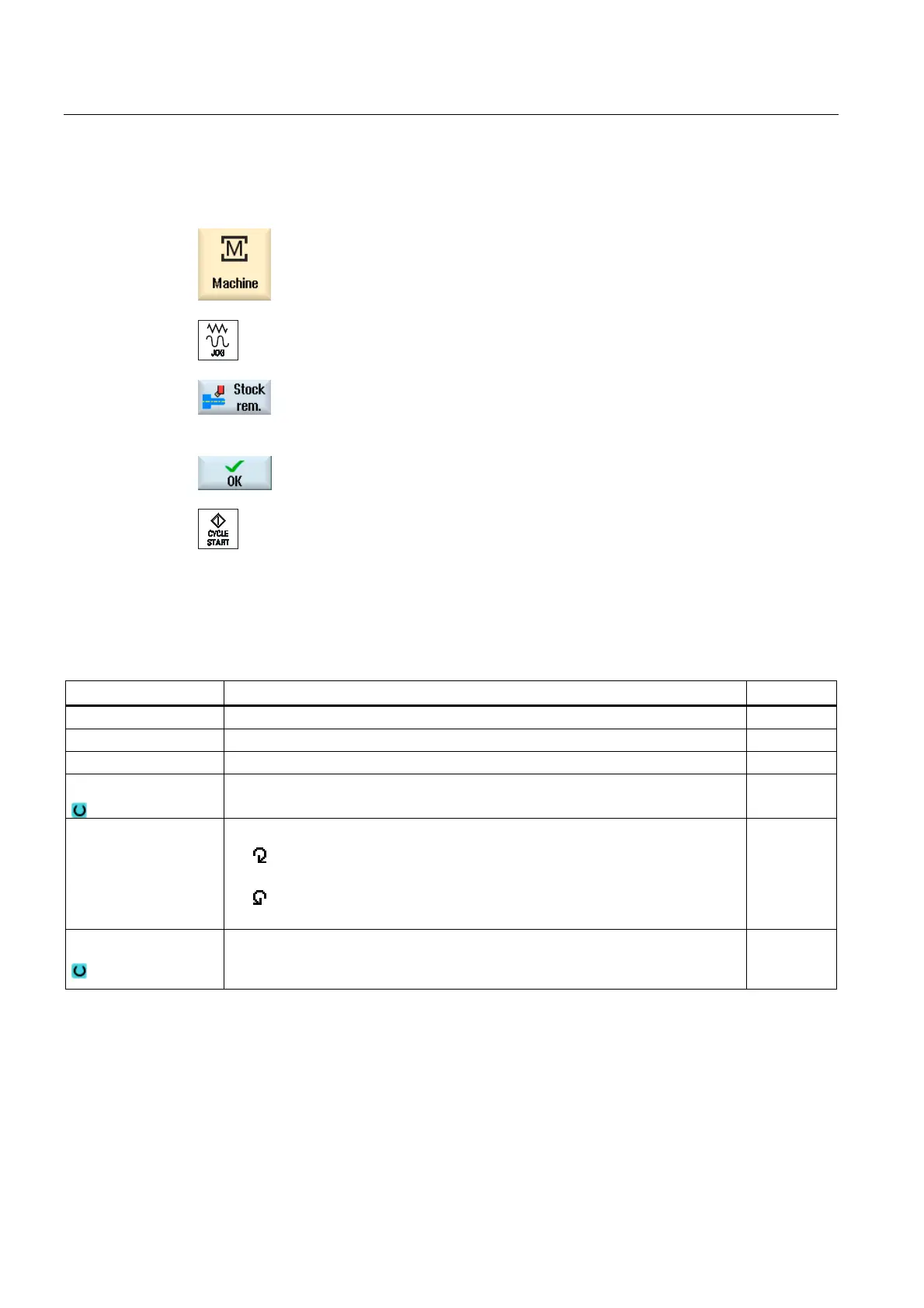

Procedure
1. Press the "Machine" operating area key
2. Press the <JOG> key.
3. Press the "Stock removal" softkey.
4. Enter desired values for the parameters.
5. Press the "OK" softkey.
The parameter screen is closed.
6. Press the <CYCLE START> key.
The "Stock removal" cycle is started.
You can return to the parameter screen form at any time to check and
correct the inputs.
Table 3- 1
Parameter Description Unit
T Tool name
D Cutting edge number
F Feedrate mm/rev
S / V
Spindle speed or constant cutting rate rpm
m/min
Spindle M function Direction of spindle rotation (only when ShopTurn is not active)
•
•
Machining
• ∇ (roughing)
• ∇∇∇ (finishing)
