Introduction

1.2 Operator panel fronts

Turning

34 Operating Manual, 03/2013, 6FC5398-8CP40-3BA1

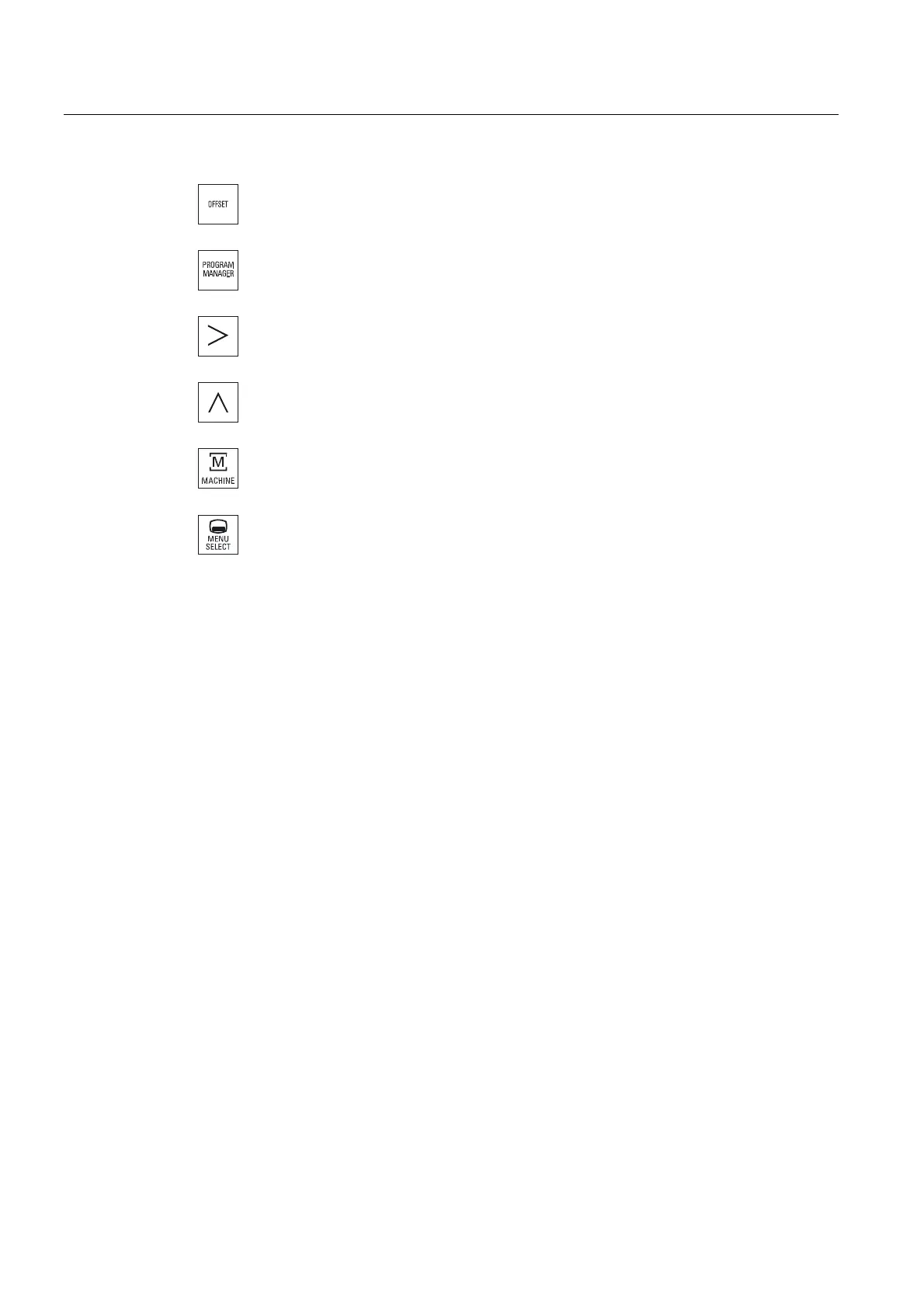

<OFFSET> - only OP 010 and OP 010C

Calls the "Parameter" operating area.

<PROGRAM MANAGER> - only OP 010 and OP 010C

Calls the "Program Manager" operating area.

Menu forward key

Advances in the extended horizontal softkey bar.

Menu back key

Returns to the higher-level menu.

Calls the "Machine" operating area.

Calls the main menu to select the operating area.
