Ladder Viewer and Ladder add-on (828D only)
23.6 Displaying information on the program blocks
Turning
Operating Manual, 03/2013, 6FC5398-8CP40-3BA1
791
Times and counters active Green
Error during execution Red
No signal flow Gray
No network executed Gray
STOP mode Gray
Note
Colored display in program status
In the display of the program status only the color of the signal flow is relevant.
Enlarging/reducing the display of the ladder diagram

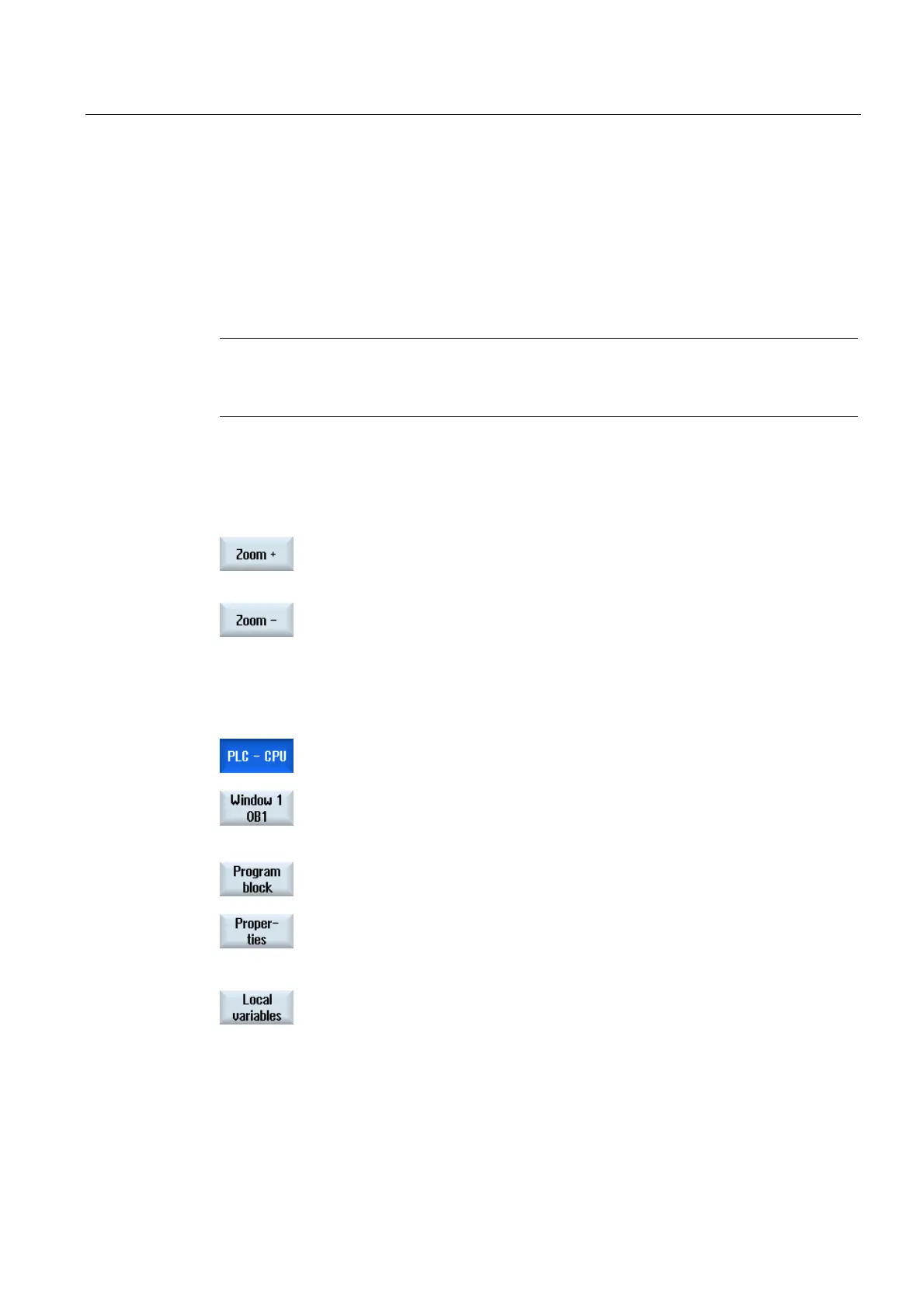

1. Press the "Zoom +" softkey to enlarge the section of the ladder
diagram.
After enlarging, the "Zoom -" softkey is available.
2. Press the "Zoom -" softkey to reduce the section of the ladder diagram
again.
Procedure
1. Ladder add-on tool is opened.
...
2. Press the "Window 1" or "Window 2" softkey.
3. Press the "Program block" softkey.
The "Program block" list is displayed.
4. Press the "Properties" softkey if you wish to display additional
information.
- OR -
Press the "Local variables" softkey if you wish to display data of a
variable.
