Xerox Phaser 3610 Service Manual

Overview
Phaser 3610, WorkCentre 3615 Service Manual 1-11
Introduction

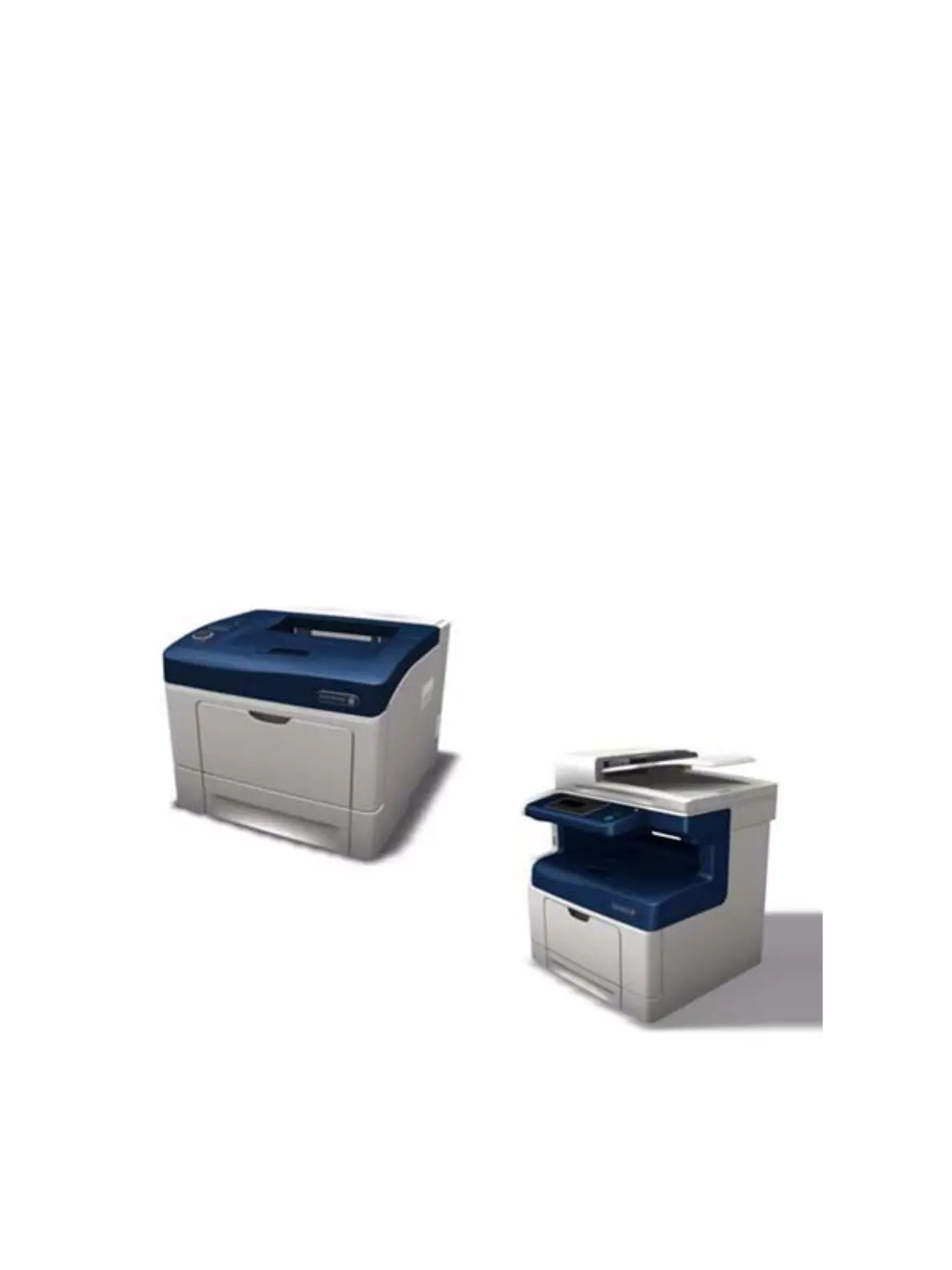

The Phaser 3610, WorkCentre 3615 laser printers have a single-pass laser-design architecture based on
the electrophotographic recording principle, which offers mono print speed at 30/30 ppm, and
resolutions up to 1200 x 1200 dots-per-inch (dpi). The printers supports Adobe PostScript 3 and PCL6,
USB 2.0, and 10/100 Base-TX Ethernet. The Phaser 3610, WorkCentre 3615 printers provides a
standard 150-Sheet Bypass Tray and a standard 250-Sheet Tray 1. The Bypass Tray supports specialty
media, card stock, and envelopes. The standard paper input is 400 sheets and the maximum input with
optional Trays 2, 3, and 4 is 2,050 sheets. The Output Tray holds 300 sheets facedown.
The printer options add memory, paper capacity, and functionality. Memory upgrades are available to
increase the standard RAM from 1 GB up to 2 GB maximum. A 40 GB Hard Disk Drive and a 550-Sheet
Feeder are available as an option. Auto-duplexing is available and no tools are required to install the
Duplex Unit.

Xerox Phaser 3610 Specifications

General

Color	No
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	6.5 s
Print speed (black, normal quality, A4/US Letter)	45 ppm
Maximum duty cycle	110000 pages per month
Number of print cartridges	1
Page description languages	PCL 5e, PCL 6, PostScript 3
Network ready	Yes
Security algorithms	EAP, EAP-TLS, EAP-TTLS, WPA-PSK, WPA2-PSK
Mobile printing technologies	Apple AirPrint
Internal memory	512 MB
Processor frequency	400 MHz
Maximum internal memory	1024 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	56 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Maximum print size	216 x 356 mm
Paper tray media types	Card stock, Envelopes, Labels, Plain paper
Paper tray media weight	60 - 216 g/m²
ISO A-series sizes (A0...A9)	A4, A5
Maximum ISO A-series paper size	A4
Standard interfaces	Ethernet
Optional connectivity	Wireless LAN
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
Server operating systems supported	Windows Server 2003, Windows Server 2003 R2, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Power consumption (standby)	52 W
Power consumption (printing)	686 W
Power consumption (PowerSave)	2 W
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	15 - 28 °C
Operating relative humidity (H-H)	20 - 70 %
Product color	Blue, White

Weight and Dimensions

Depth	426 mm
Width	393 mm
Height	315 mm
Weight	13000 g
