Xerox Phaser 3610

Image Quality
Phaser 3610, WorkCentre 3615 Service Manual3-4

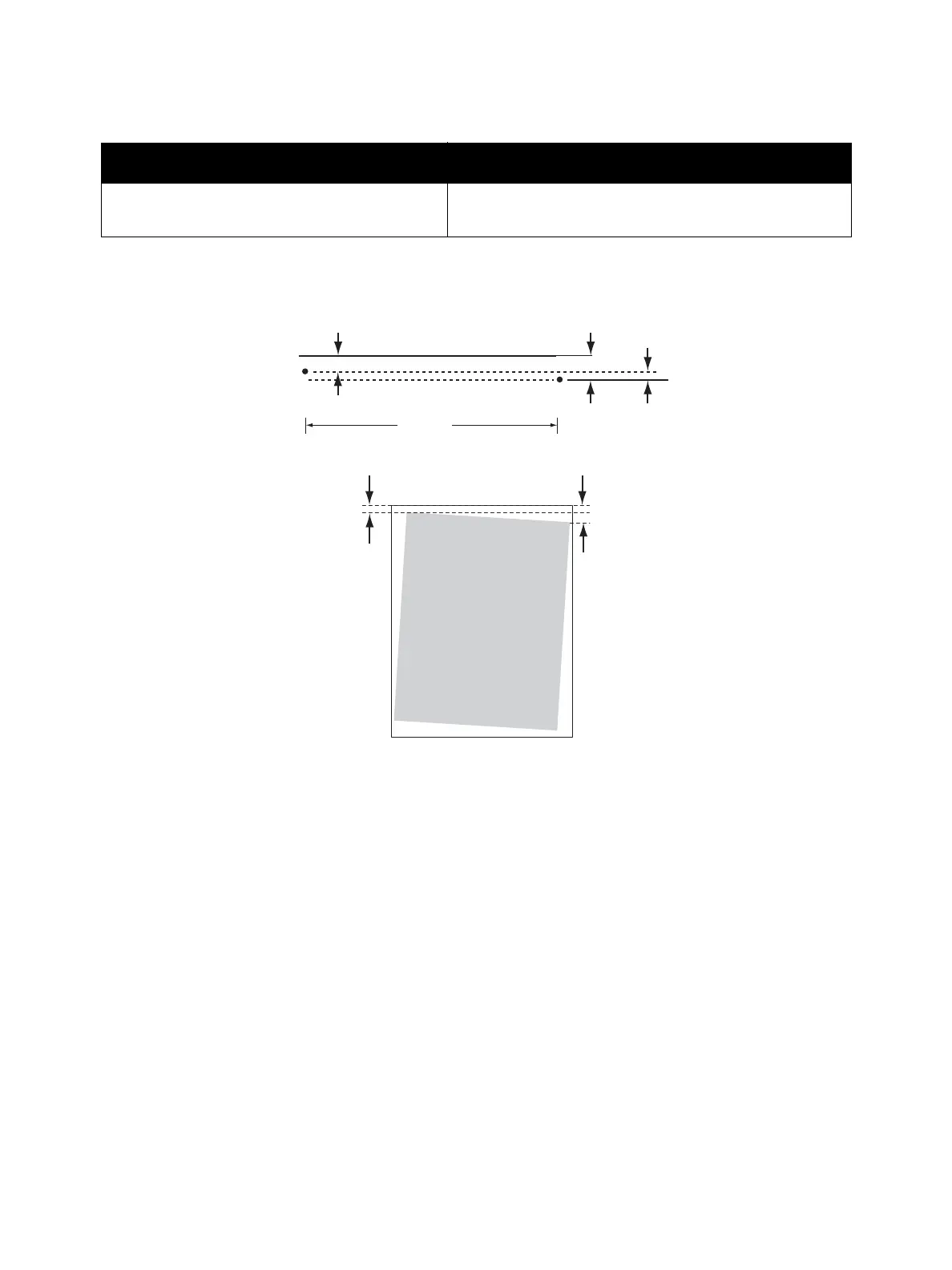

Skew
Magnification Deviation (Reduce/ Enlarge Error) • Vertical: 15.74 in ± 0.02% (400 mm ± 0.5%)
• Horizontal: 9.45 in ± 0.02% (240 mm ± 0.5%)
Image Quality Specifications (Continued)
Characteristic Specification
Lead Edge
A
D
Skew = a - b
(within ±2.0 mm)
ab
240 mm
b = (T/E-D)
a = (T/E-C)
s7100-436
Skew 3
B
A
Image Area
