Xerox Phaser 3610

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-124
REP 7.5 Optional Tray PWB Assembly
PL 7.1 Tray 1/Optional Tray 550-Sheet Feeder (1/4)
Removal
1. Remove the Tray from the 550-Sheet Feeder.
2. Remove (REP 7.1 550-Sheet Feeder).
3. Remove (REP 7.2 Left Side Cover)
4. Remove the Optional Tray PWB Assembly. (Figure 1)
a. Release the harness from the clamp, and then remove the clamp from the frame.
b. Disconnect all connectors from the PWB Assembly.
c. Remove 3 screws (silver, tapping, 8mm) that secure the PWB Assembly.

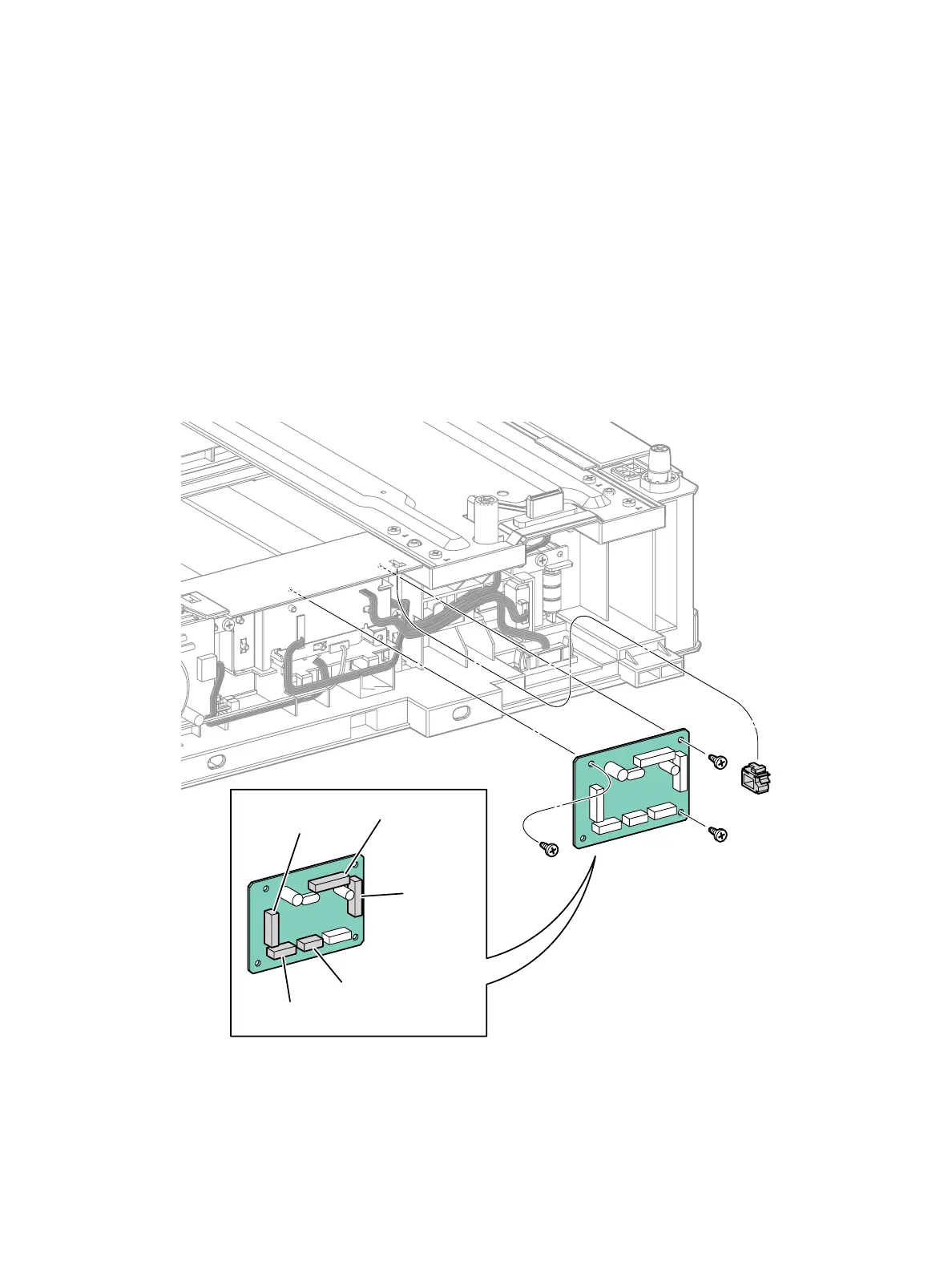

Figure 1
Replacement
1. Replace in reverse order.
s3610-113
P/J422
P/J420
P/J419
P/J421
P/J423
b)
c)
a)
