Xerox Phaser 3610

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-85
REP 4.3 Exit Invert Drive Assembly
PL 4.1 Drive
WARNING: Allow the Fusing Assembly to cool before servicing the product.
1. Remove (REP 5.2 ESS PWB Housing).
2. Access the MCU PWB. (Figure 1)
a. Release 4 clips that secure the Top Frame Assembly to remove it from the chassis.
b. Release 3 clips that secure the MCU PWB cover to remove it from the chassis.
c. Disconnect P/J16 from the MCU PWB and release the invert clutch harness from the guide.

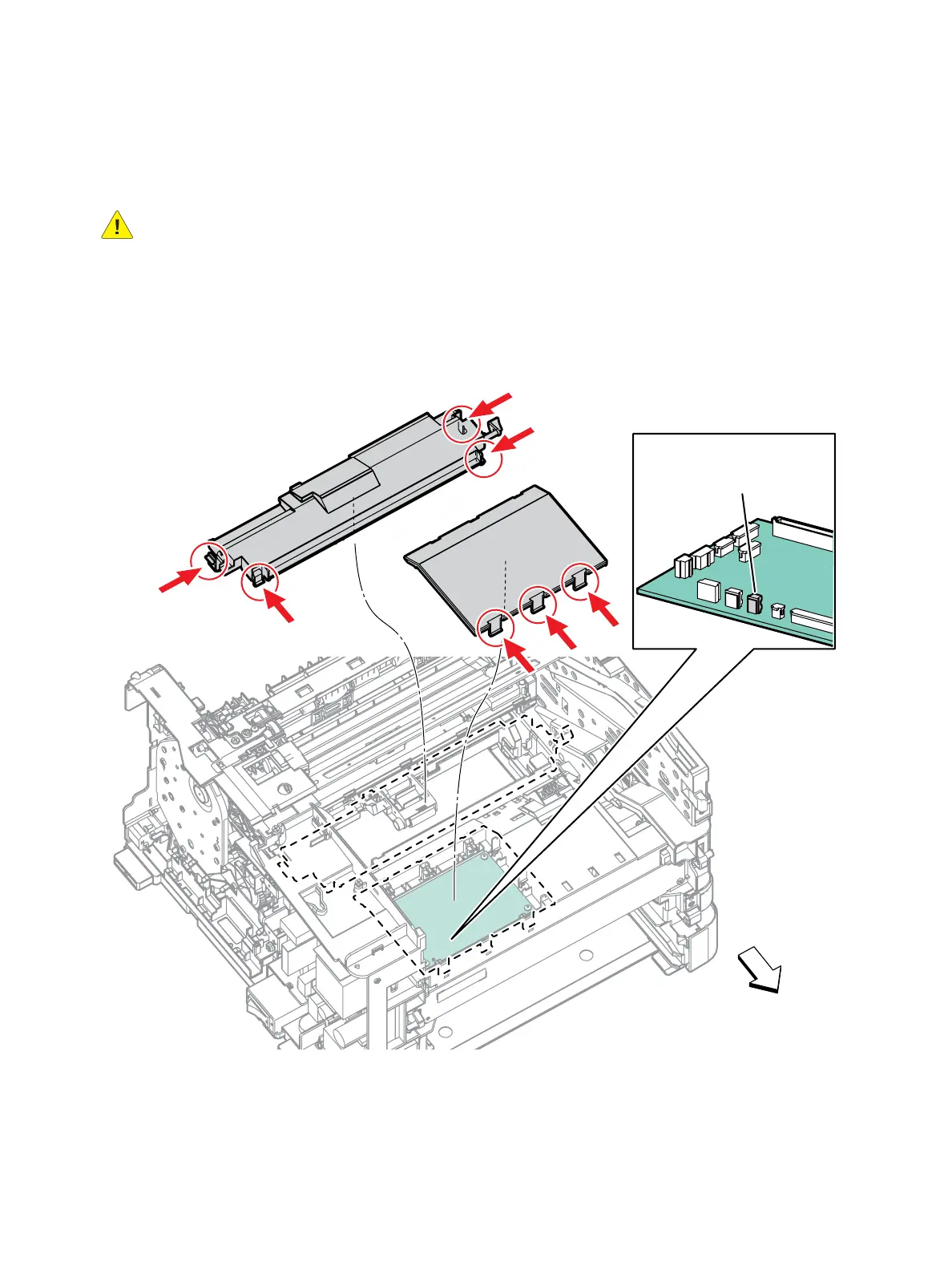

Figure 1
s3610-054
P/J16
Front
