Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-117
REP 6.4 Pick-up Module Kit
PL 6.1 IIT Scanner / DADF
Removal
1. Open the DADF Cover.
2. Remove the Feed Roll Assembly. (Figure 1)
a. Release the paper guide on each side of the assembly.
b. Remove the Feed Roll Assembly.

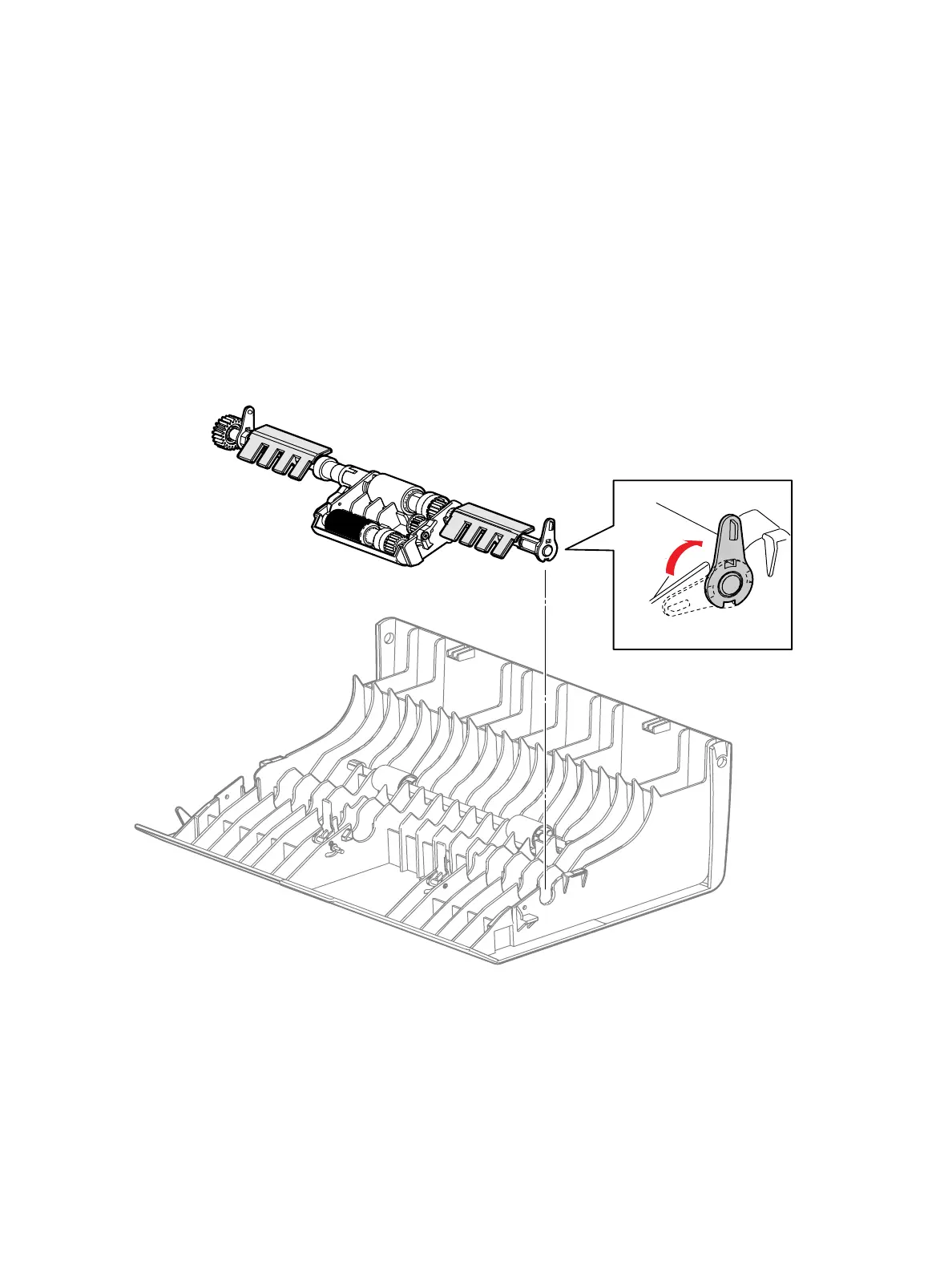

Figure 1
s3610-108
