Xerox Phaser 3610

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-101
REP 5.2 ESS PWB Housing
PL 5.1 Electrical (ESS PWB / LVPS) (3610)
PL 5.2 Electrical (ESS PWB / LVPS) (3615)
WARNING: Allow the Fusing Assembly to cool before servicing the product.
1. Remove (REP 5.1 ESS PWB).

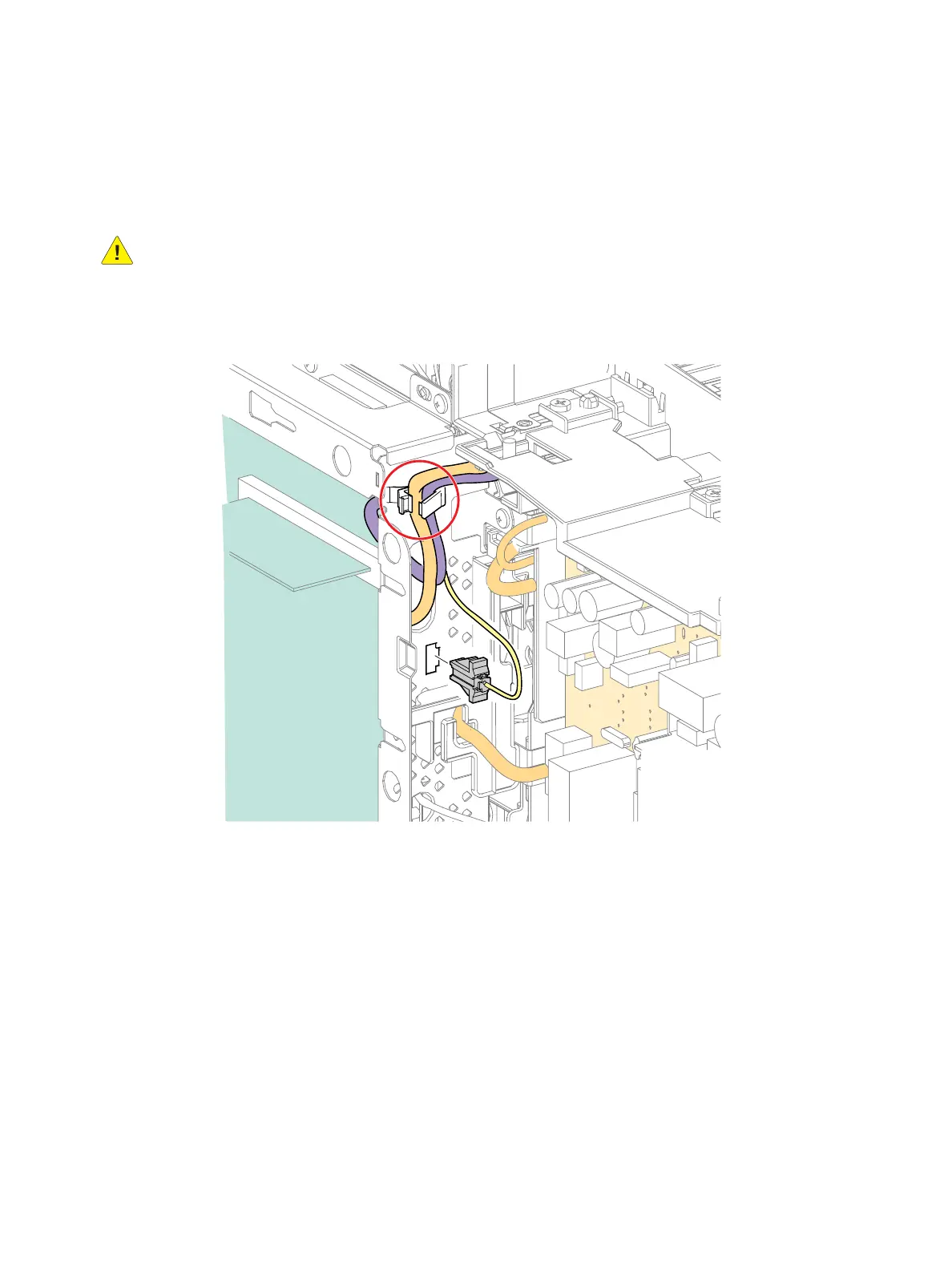

2. Release the harness clamps from all harnesses routed through the ESS Housing, then disengage
the relay connector on the ESS Housing. (Figure 1)
Figure 1
s3610-046
