Xerox Phaser 3610 - REP 2.17 Bypass Tray Retard Roller

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-66
REP 2.17 Bypass Tray Retard Roller
PL 2.7 Bypass Tray
Removal
1. Remove the Bypass Tray.
2. Release the clip that secures the Retard Roller Assembly to the Bypass Tray, then remove the
assembly by rotating it in the direction of the arrow. (Figure 1)

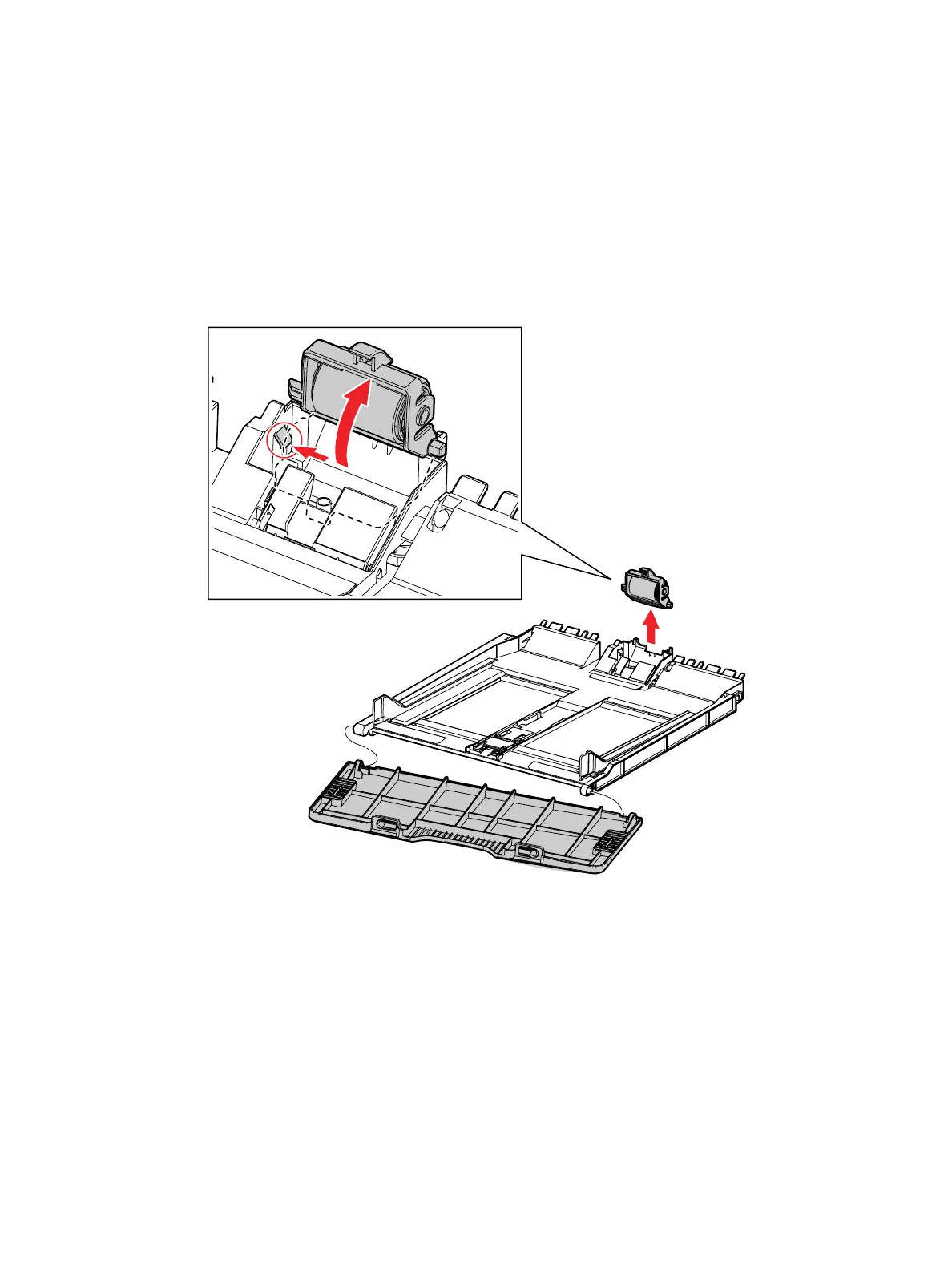

Figure 1
Replacement
1. Make sure the spring is positioned correctly before lowering the Retard Roller Assembly.
2. Test the assembly once you have it secured.
3. Replace in reverse order.
s3610-004
