Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-132
REP 7.11 Feed Roller Assembly
PL 7.3 Tray 1/Optional Tray 550-Sheet Feeder (3/4)
Removal
1. Remove the Tray from the 550-Sheet Feeder.
2. Remove (REP 7.1 550-Sheet Feeder).

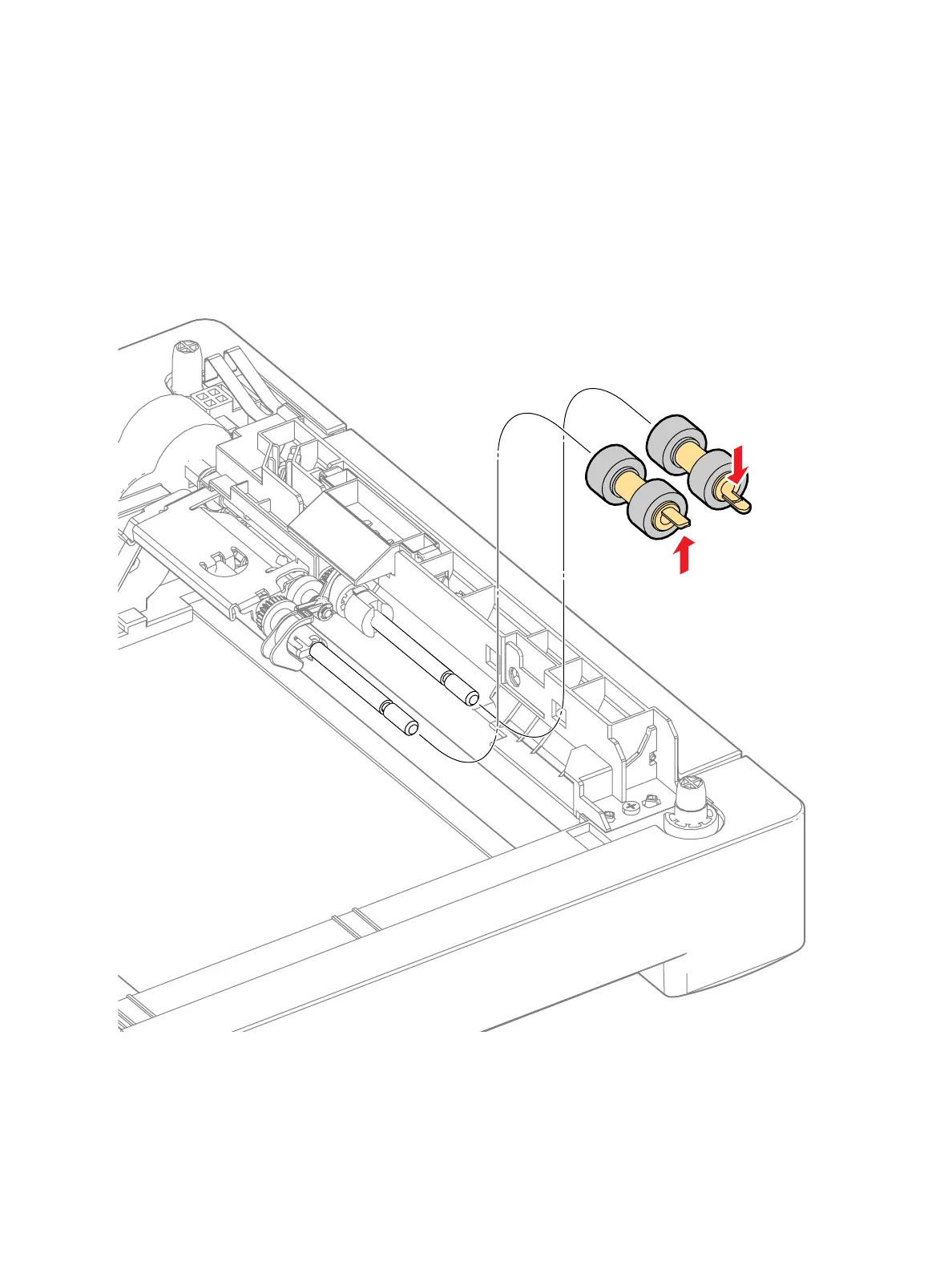

3. Release the clip that secures each roller to the shaft. (Figure 1)
Figure 1
Replacement
1. Replace in reverse order.
s3610-121
