Wiring
Phaser 3610, WorkCentre 3615 Service Manual7-20

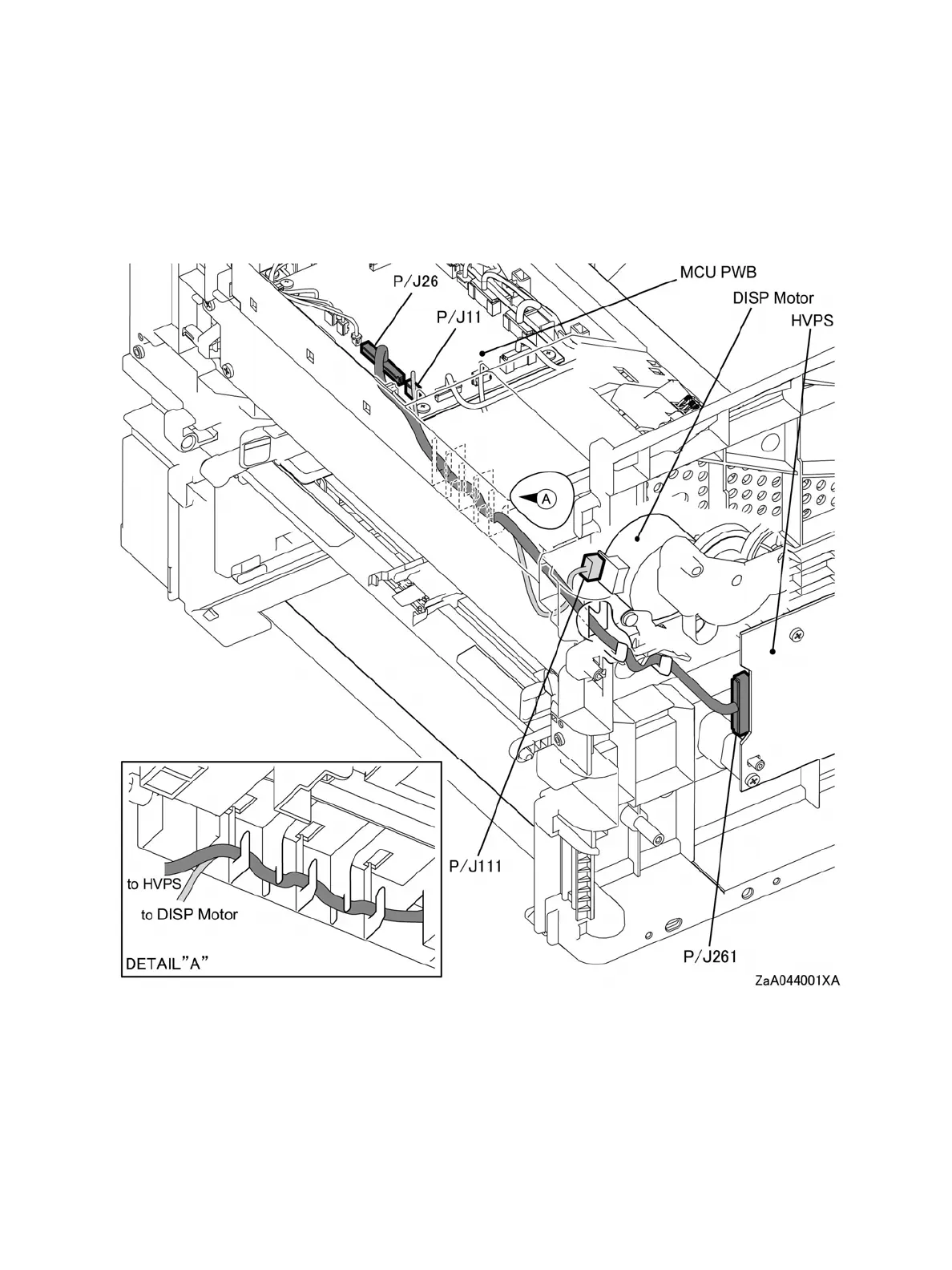

Wire Harnessing for the Printer
MCU PWB to HVPS / Dispense Motor Assembly
