Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-21
REP 1.12 Control Panel (3615)
PL 1.5 Control Panel (3615)
Removal
1. Remove (REP 1.16 Upper Left Side Cover (3615)).
2. Release the tab on the left side of the Front Scanner Cover, move the cover to the left and lift to
remove.

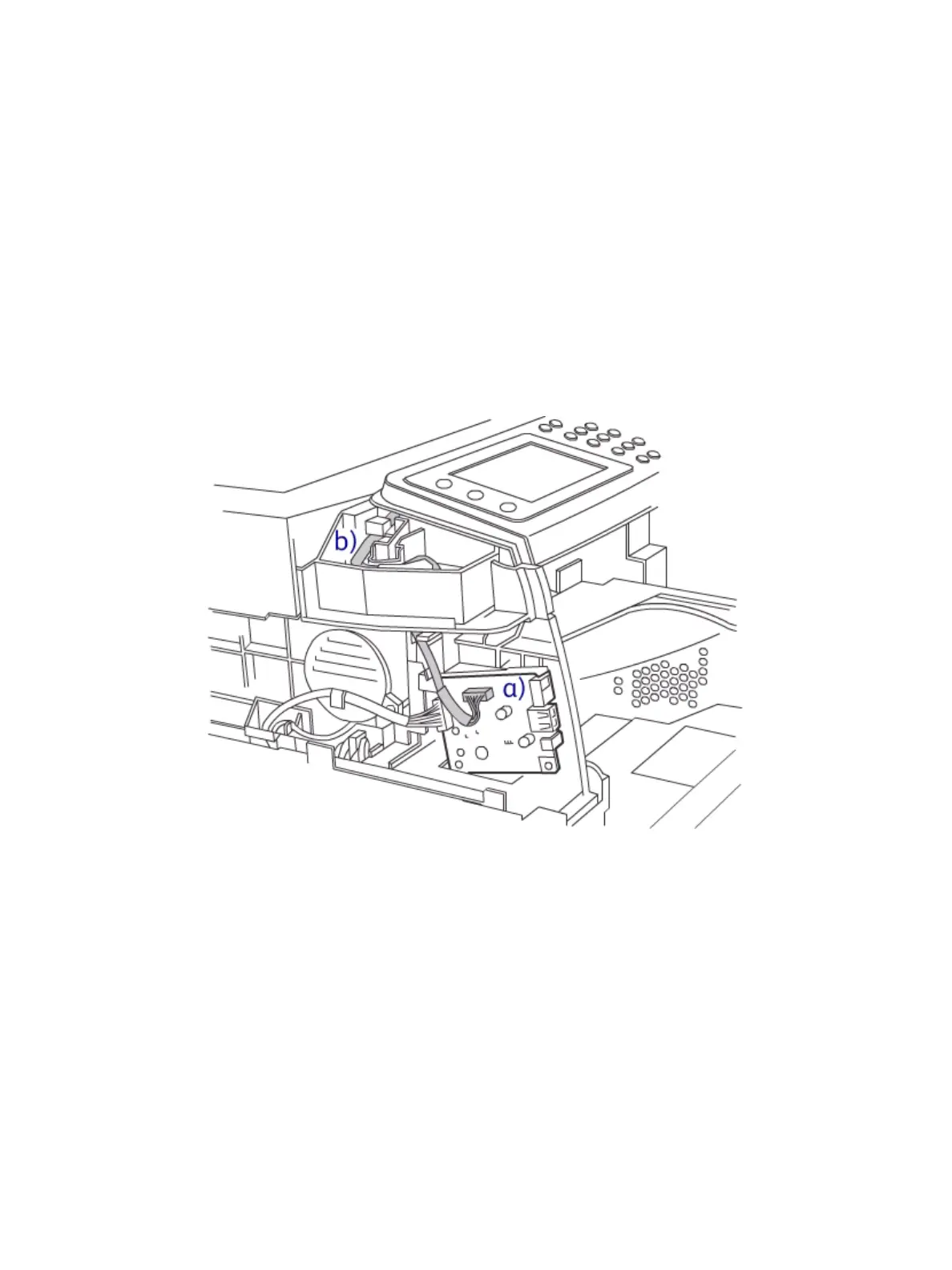

3. Disconnect P/J830 from the Front USB PWB. (Figure 1)
a. Disconnect P/J 830
b. Release the wire harness from the clips and gently pull the harness up through the access hole
in the chassis.
Figure 1
