Phaser 3610, WorkCentre 3615 Service Manual 4-27
REP 1.16 Upper Left Side Cover (3615)
PL 1.2 Covers (3615)
Removal
1. Remove (REP 1.9 IIT Left Side Cover).

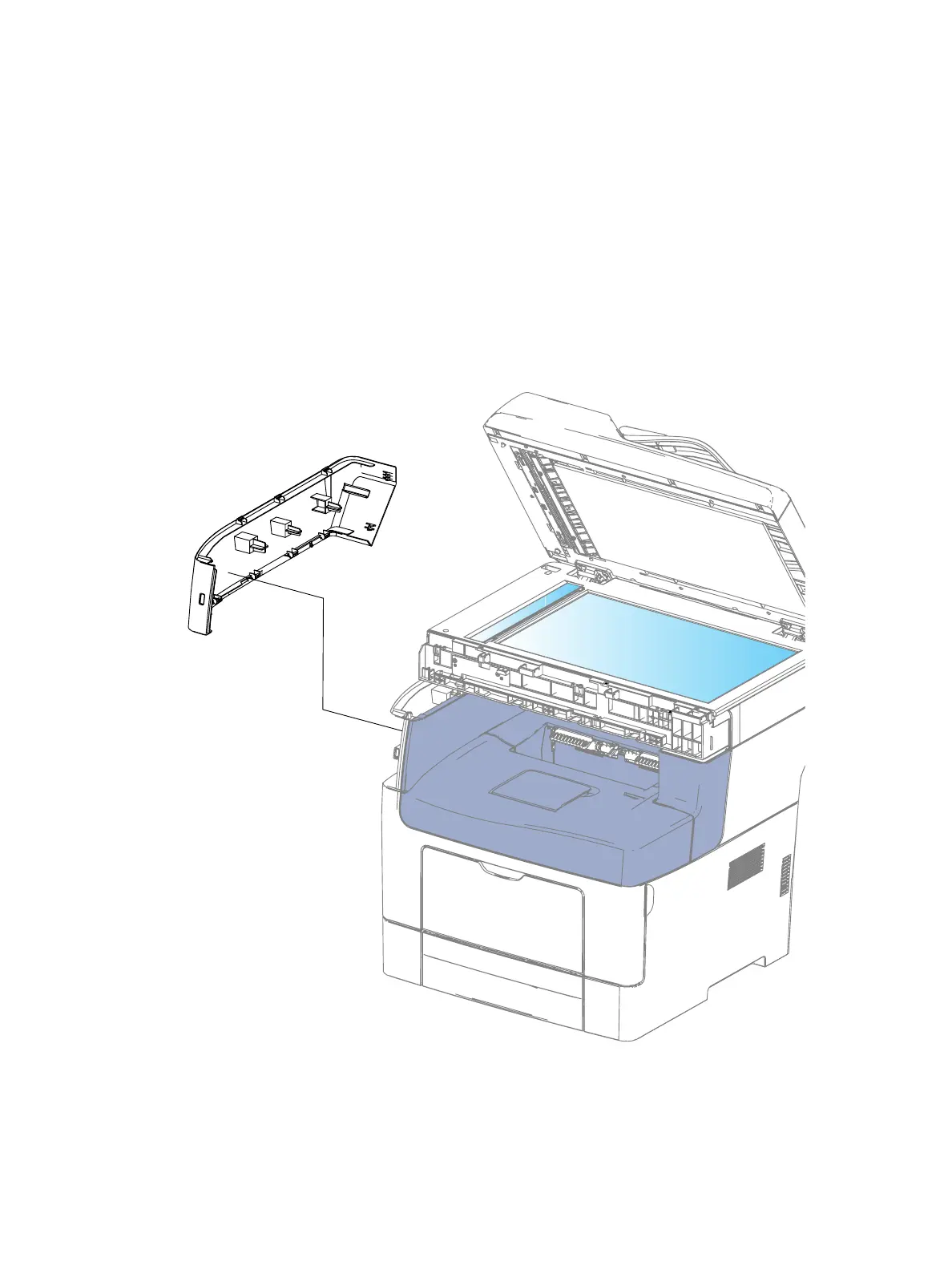

2. Remove the Upper Left Side Cover. (Figure 1)
a. Starting at the front side of the cover, pry the cover off from the top 3 tabs
b. Gently flex the cover and lift to remove.
Figure 1
Replacement
1. Replace in reverse order.
s3610-142d
