Xerox Phaser 3610

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-122
REP 7.3 Right Side Cover
PL 7.1 Tray 1/Optional Tray 550-Sheet Feeder (1/4)
Removal
1. Remove the Tray from the 550-Sheet Feeder.
2. Remove (REP 7.1 550-Sheet Feeder).
3. Remove the Right Side Cover. (FIgure 1)
a. Remove 1 screw (silver, tapping, 8mm)
b. Release 1 clip from the boss
c. Release 6 bosses to remove the cover

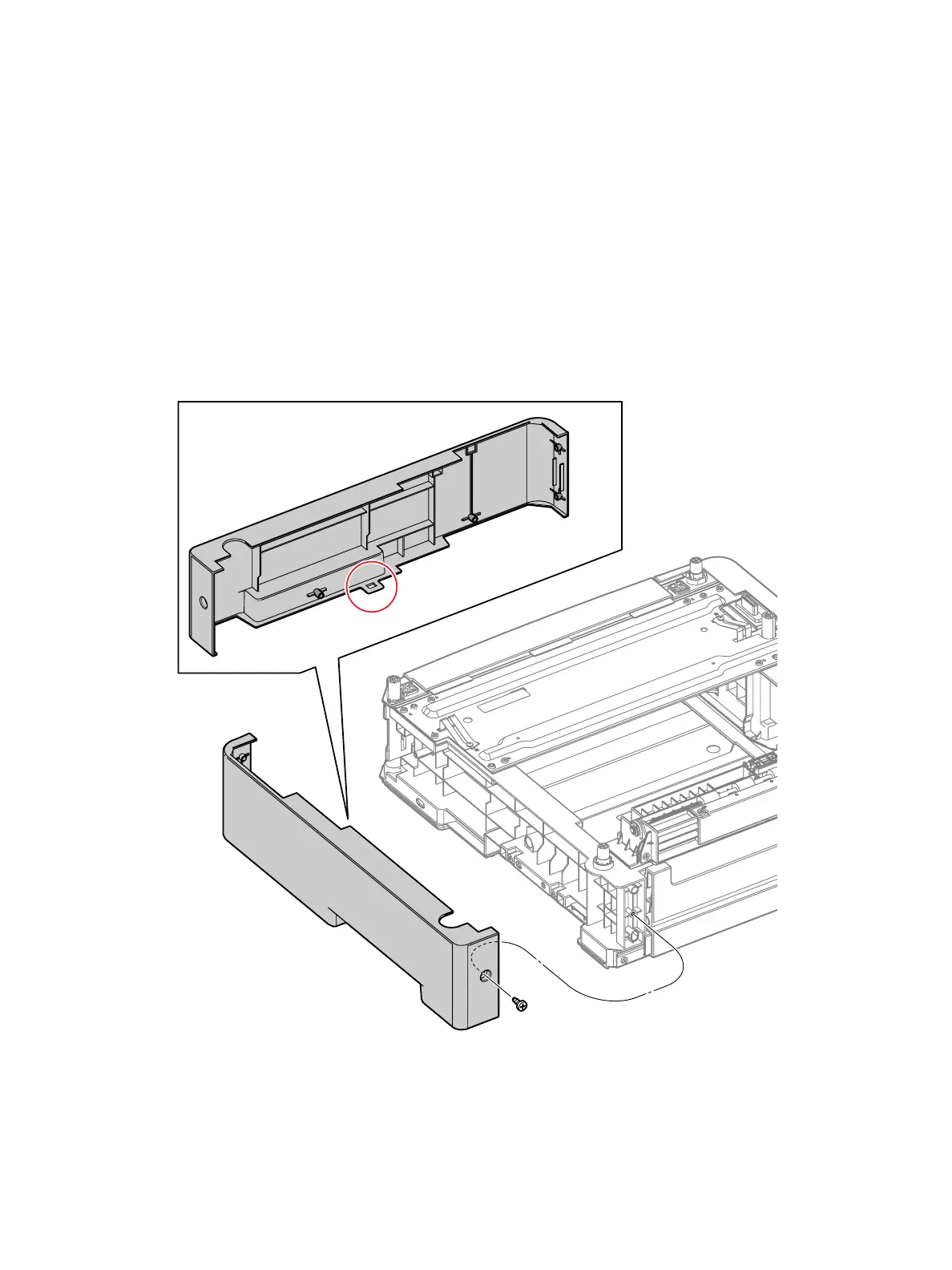

Figure 1
Replacement
1. Replace in reverse order.
s3610-111
b)
c)
a)
