Xerox Phaser 3610

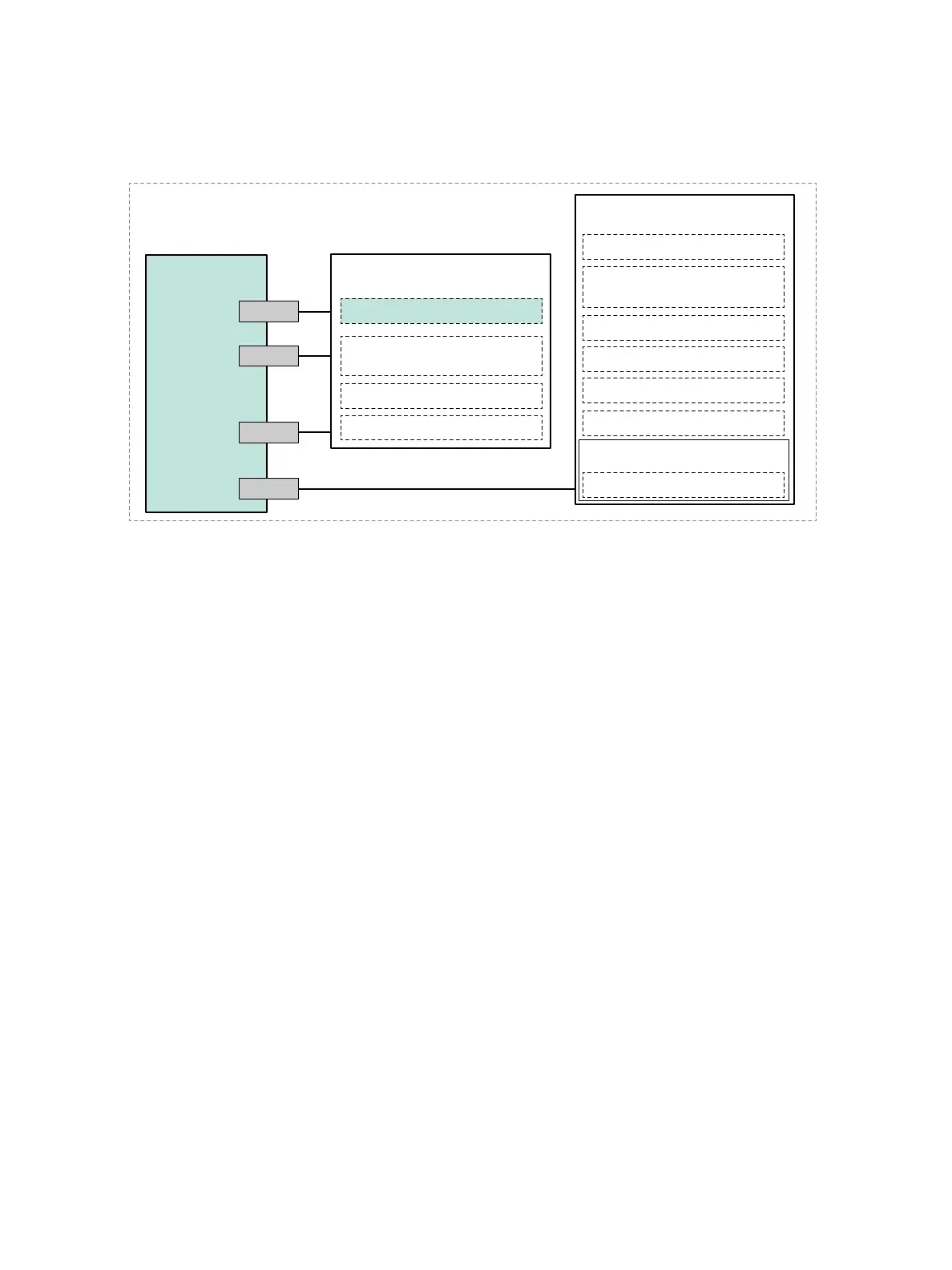

Wiring
Phaser 3610, WorkCentre 3615 Service Manual 7-53
7. Scanner
IIT Assembly
PL 6.1
CCD PWB
Scanner Home Position Sensor
LED Lamp
Carriage Motor (FB Motor)
DADF Assembly
PL 6.1
Document Sensor (Tray Sensor)
Cover Open Sensor
(DADF Cover Sensor)
Scan Sensor (Feed Sensor)
DADF Stage Sensor
Legal Paper Sensor
DADF Tray Assembly
PL 6.1
DADF Motor
Pick Motor
s3610-202b
ESS PWB
PL 5.2
P/J451
P/J452
P/J454
P/J453
