Xerox Phaser 3610

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-52
REP 2.9 Tray 1 Stopper
PL 2.4 Duplex Chute
Removal
WARNING: Allow the Fusing Assembly to cool before servicing the product.
1. Remove Tray 1.
2. Open the Rear Cover, release the stopper strap and hinge clip from the chassis and rest the Rear
Cover Assembly on the work surface.

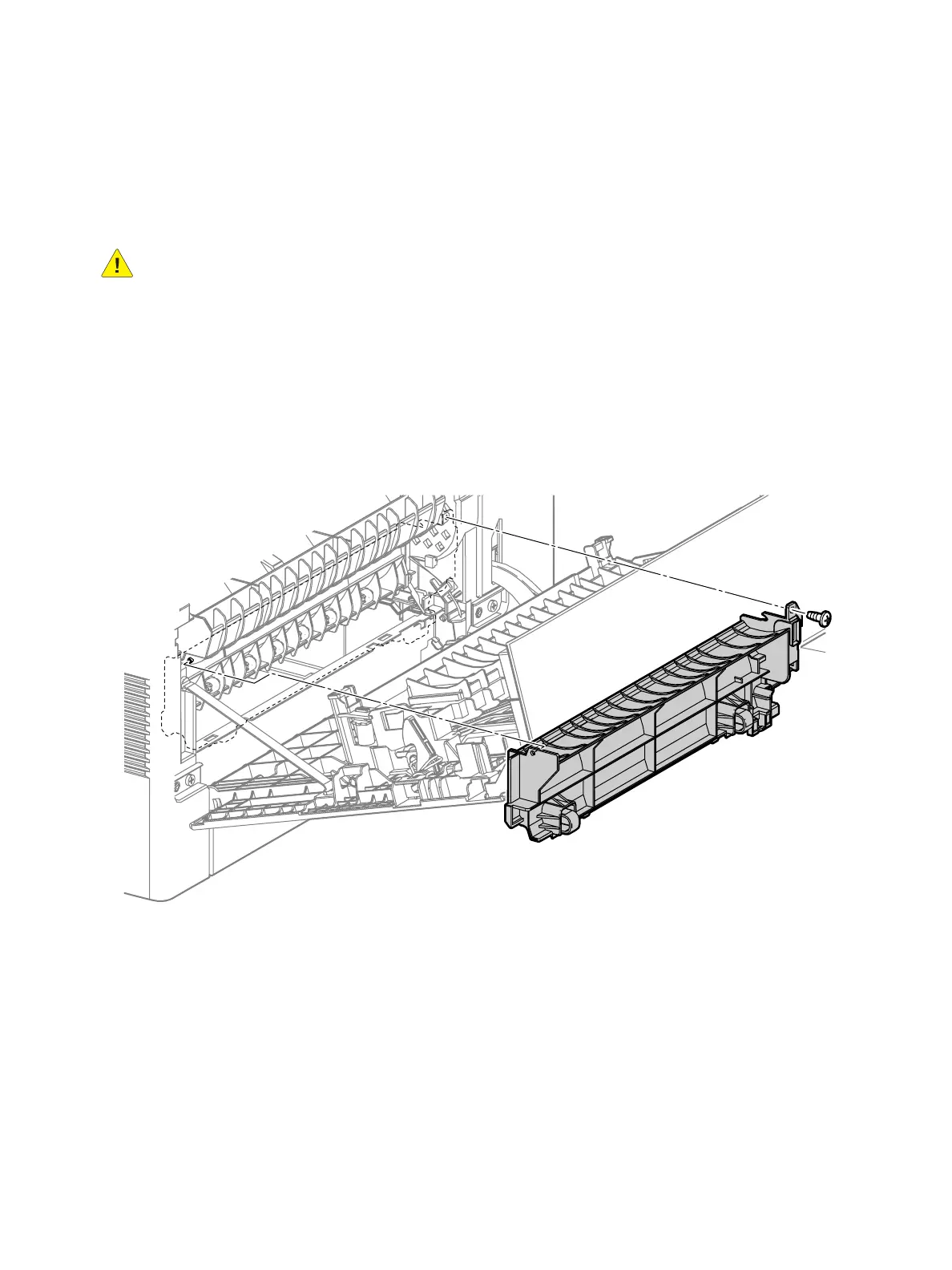

3. Remove the Interlock Switch Assembly. (Figure 1)
a. Remove 1 screw.
b. Release 2 tabs on the bottom of the assembly, move to the left to remove, but do not
disconnect the assembly.
Figure 1
s3610-067
b)
b)
a)
