Xerox Phaser 3610

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-60
REP 2.12 Left / Right Pinch Roller
PL 2.5 Exit Chute
Removal
1. Remove (REP 2.11 Exit Chute Assembly).
2. Remove the pinch rollers by carefully releasing the clips and moving them in the direction
indicated. (Figure 1)

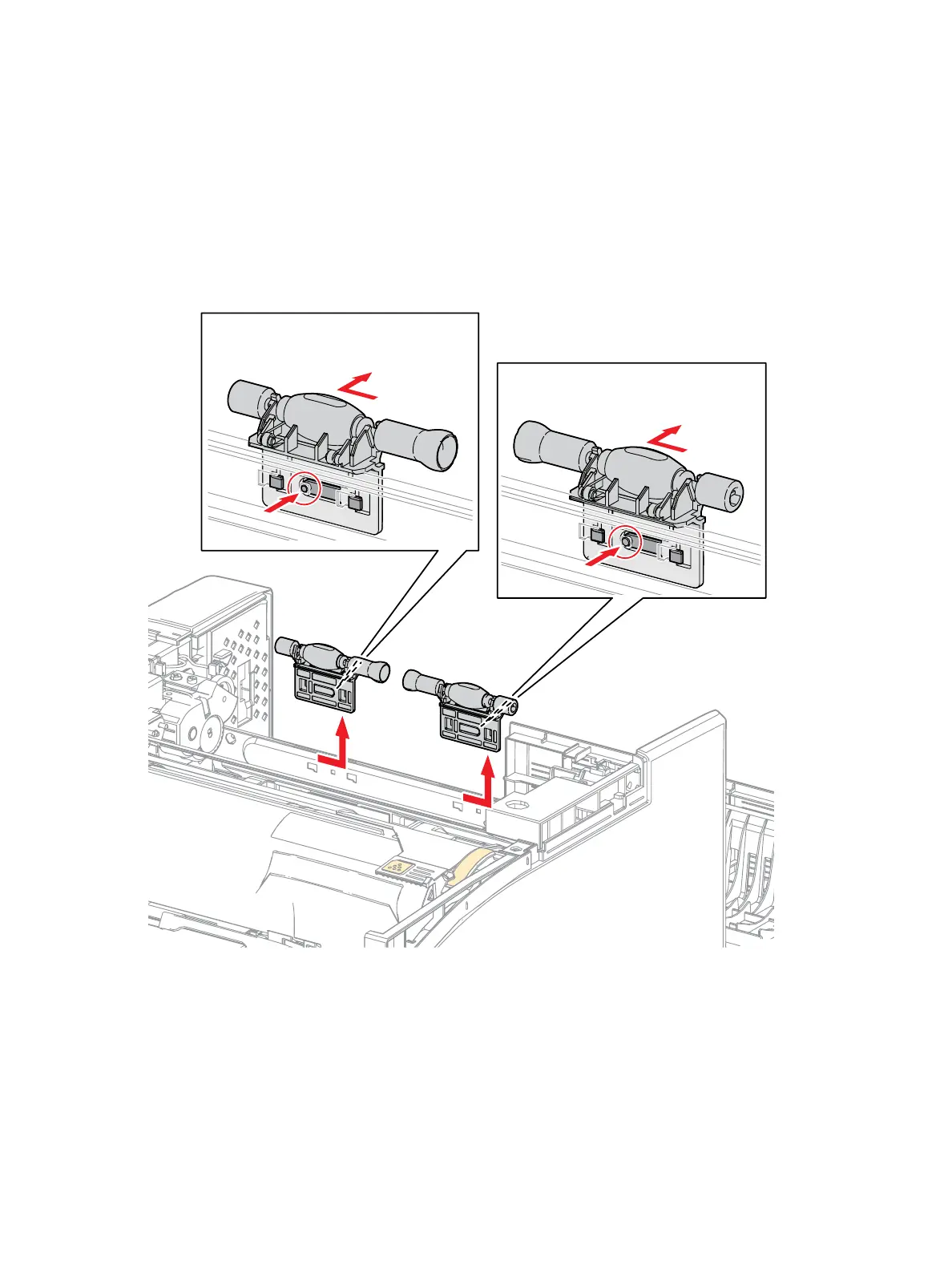

Figure 1
Replacement
1. Replace in reverse order.
s3610-03
