Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-123
REP 7.4 Rear Cover
PL 7.1 Tray 1/Optional Tray 550-Sheet Feeder (1/4)
Removal
1. Remove the Tray from the 550-Sheet Feeder.
2. Remove (REP 7.1 550-Sheet Feeder).

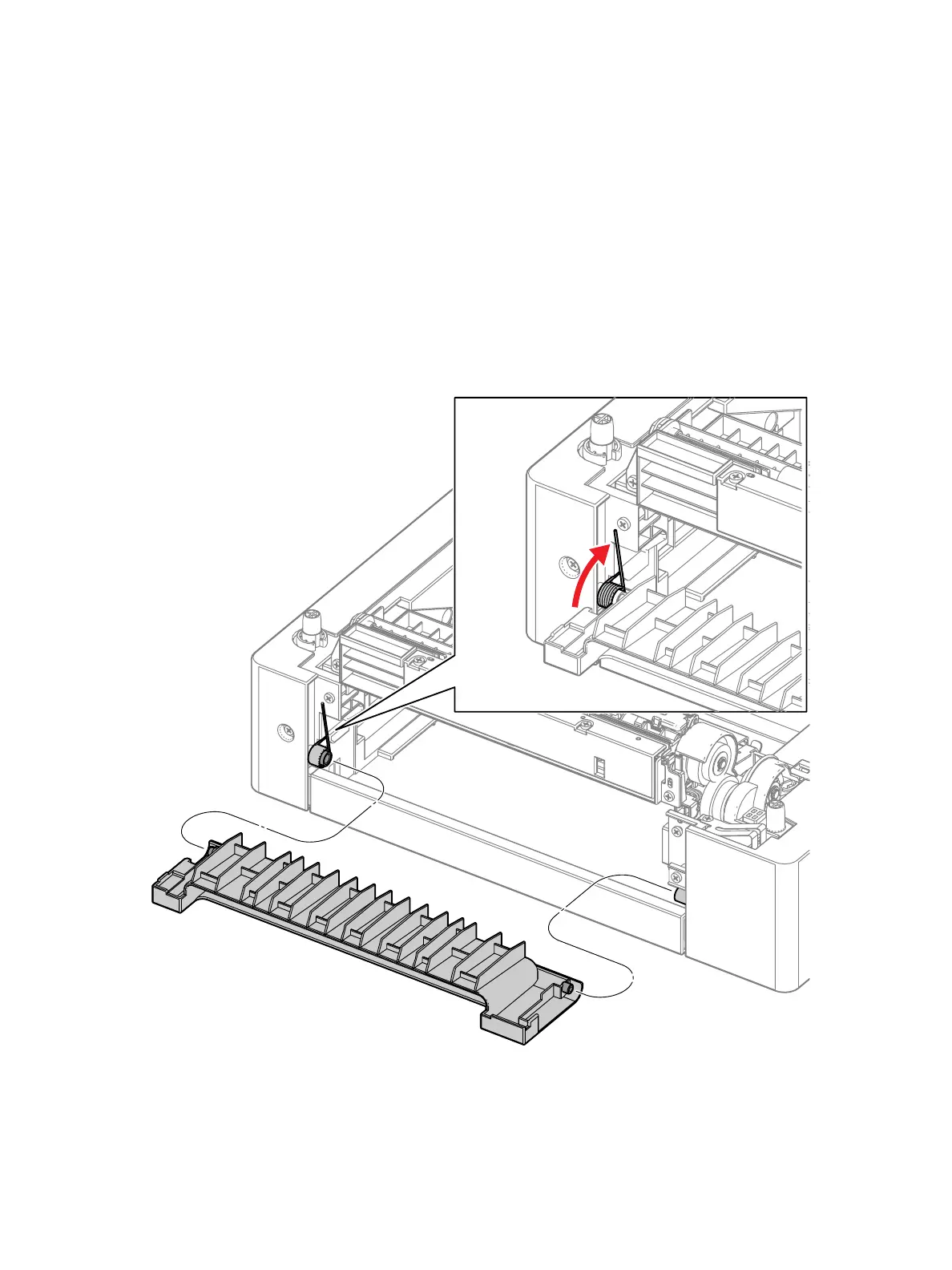

3. Remove the Rear Cover. (FIgure 1)
a. Open the Rear Cover
b. Remove one side of the Rear Cover Spring from the Rear Cover.
c. Release the left boss to remove the Rear Cover.
Figure 1
Replacement
1. Replace in reverse order.
s3610-112
b)
c)
a)
To Next Page
