Xerox Phaser 3610

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-25
REP 1.14 Right Inner Cover (3615)
PL 1.2 Covers (3615)
Removal
WARNING: Allow the Fusing Assembly to cool before servicing the product.
1. Remove (REP 1.13 Right Side Cover (3615)).

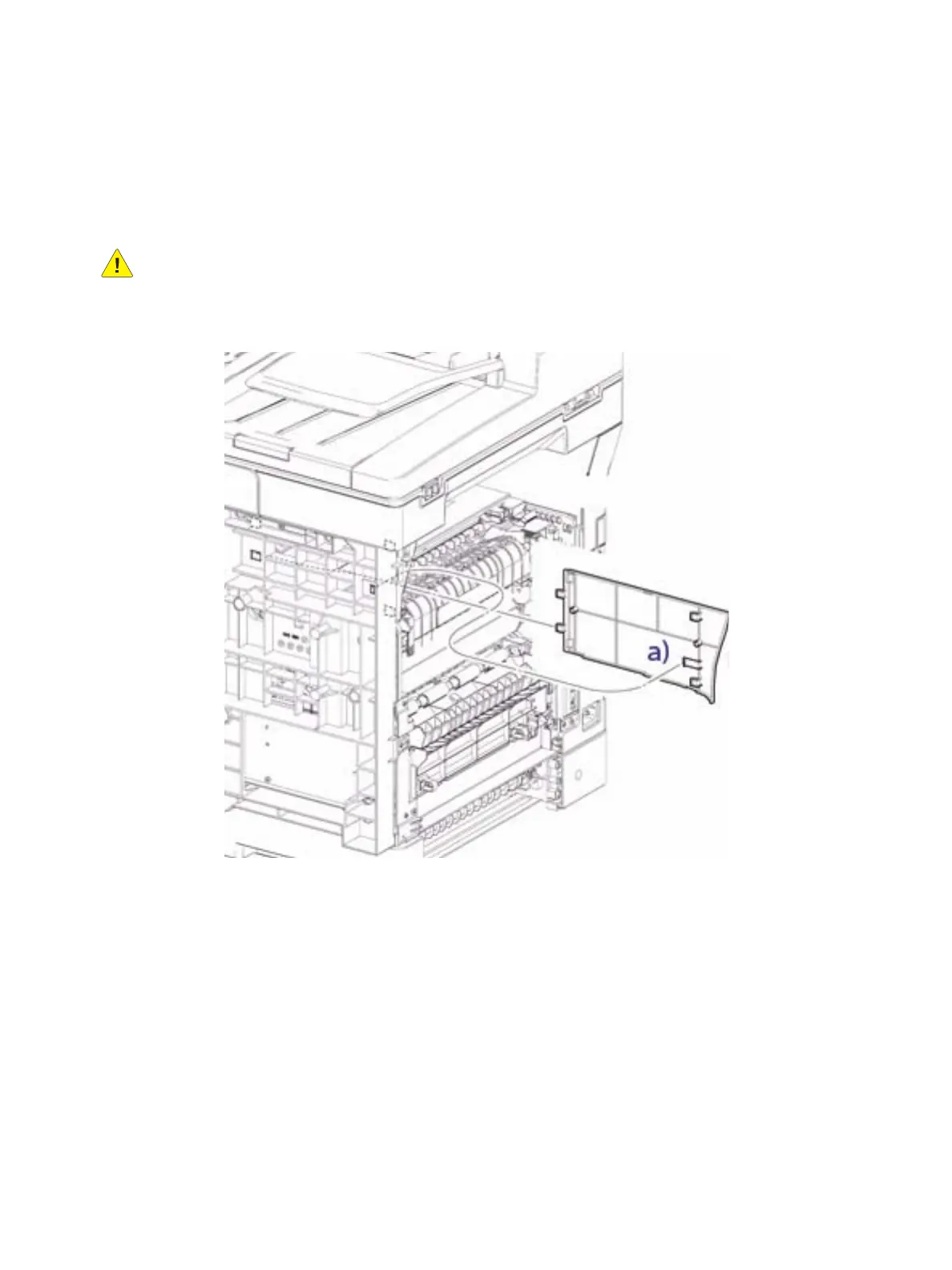

2. Release the clip to remove the Right Inner Cover. (Figure 1)
Figure 1
Replacement
1. Replace in reverse order.
