Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-24

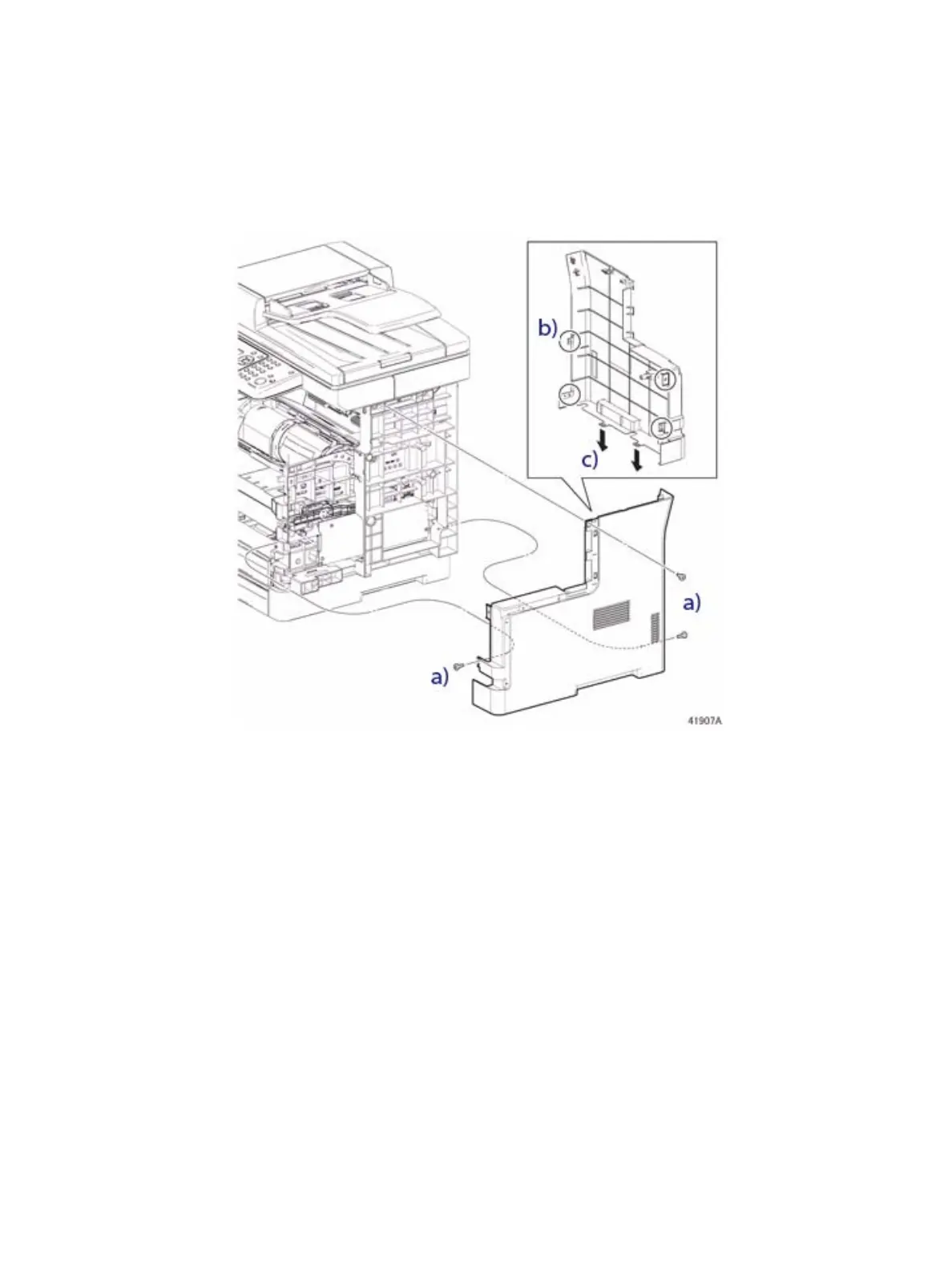

6. Remove the Right Side Cover. (Figure 2)
a. Remove 3 screws (silver, tapping, 8mm).
b. Release 4 bosses.
c. Release 3 clips.
Figure 2
Replacement
1. Secure the clips on the bottom of the cover first, before engaging the bosses.
2. Replace in reverse order.
