Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-20
REP 1.11 IIT Front Bottom Cover
PL 1.5 Control Panel (3615)
Removal
1. Remove (REP 6.1 IIT Assembly).

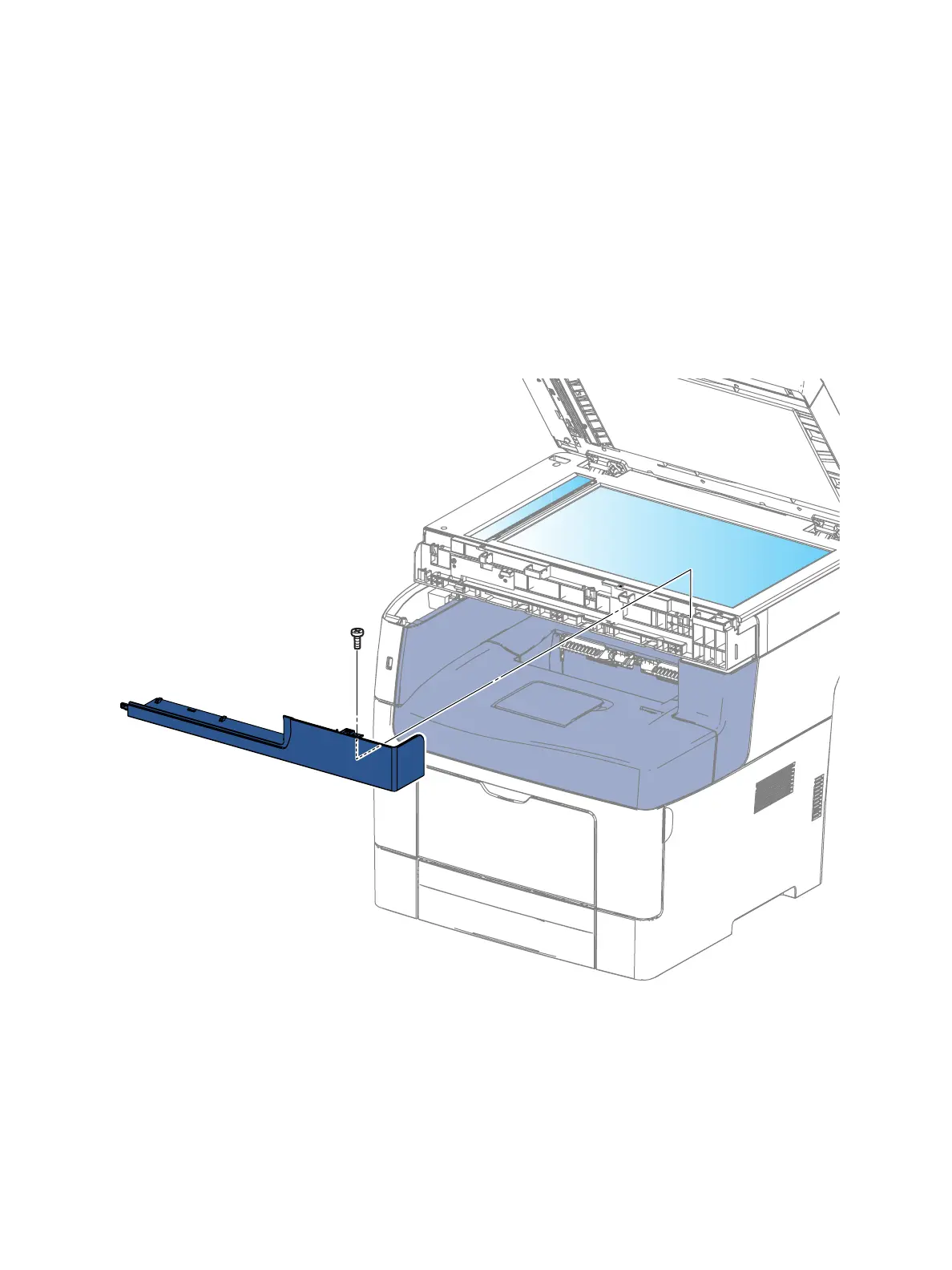

2. Remove the IIT Front Bottom Cover. (Figure 1)
a. Remove 1 screw (silver, tapping, 8mm).
b. Release the boss on the top of the cover.
c. Turn the IIT Assembly over and pry off the 3 clips that hold the cover to the chassis.
Figure 1
Replacement
1. Replace in reverse order.
s3610-142a
b)
c)
a)
