Xerox Phaser 3610

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-127
REP 7.7 Feed Clutch Assembly
PL 7.1 Tray 1/Optional Tray 550-Sheet Feeder (1/4)
Removal
1. Remove the Tray from the 550-Sheet Feeder.
2. Remove (REP 7.1 550-Sheet Feeder).
3. Remove (REP 7.2 Left Side Cover)
4. Remove (REP 7.6 Drive Assembly).
5. Remove the Feed Clutch Assembly. (FIgure 1)
a. Disconnect P/J4201from the Feed Clutch Assembly,
b. Release the harness from the harness guide.
c. Remove the E-ring that secures the Feed Clutch Assembly to the shaft.

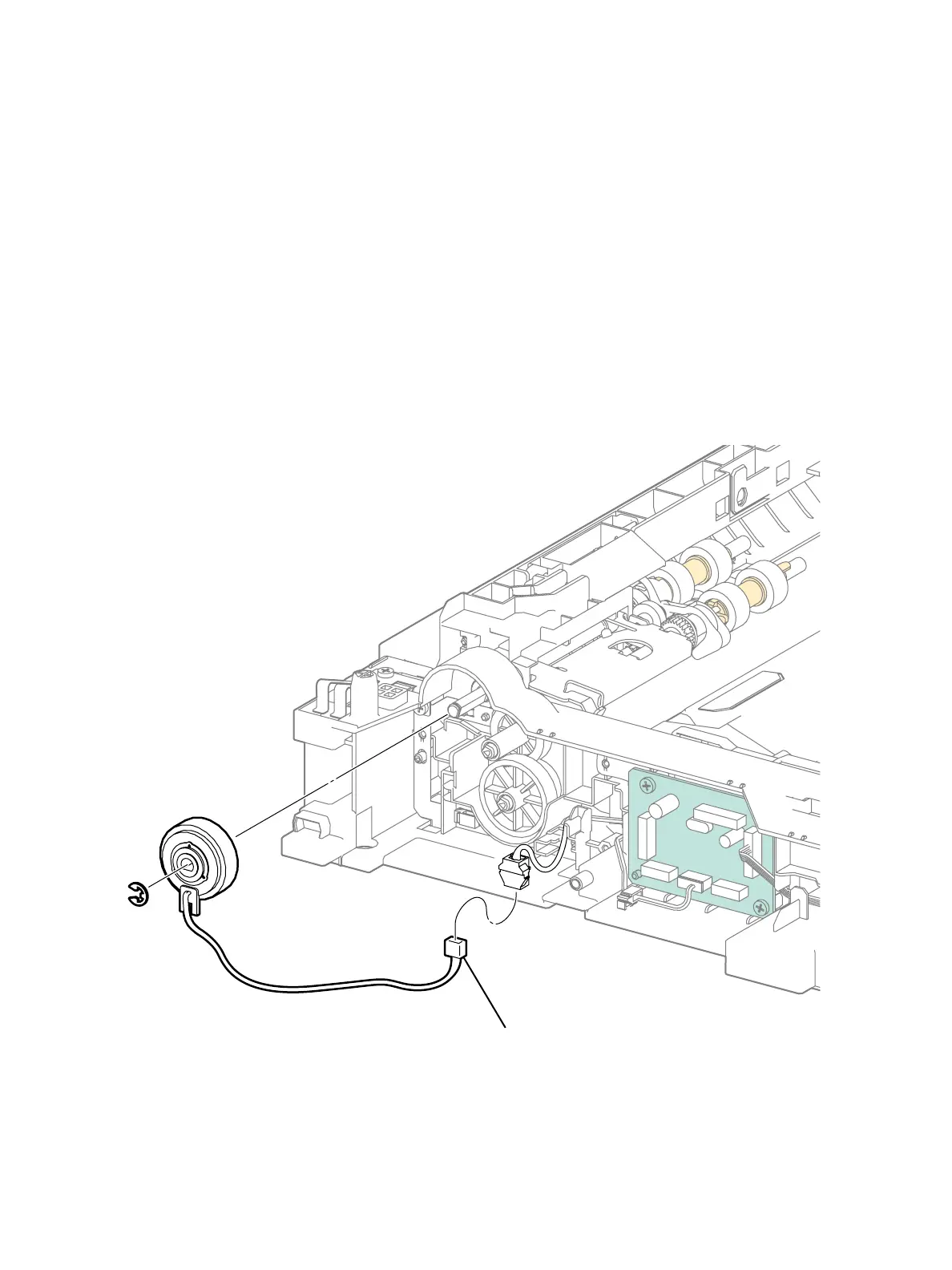

Figure 1
Replacement
1. Replace in reverse order.
s3610-116
P/J4201
b)
c)
a)
