Xerox Phaser 3610

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-126
5. Remove the Drive Assembly. (FIgure 2)
a. Remove the gear
b. Remove the 3 screws (silver, M3, 4mm) that secure the motor to the motor bracket.

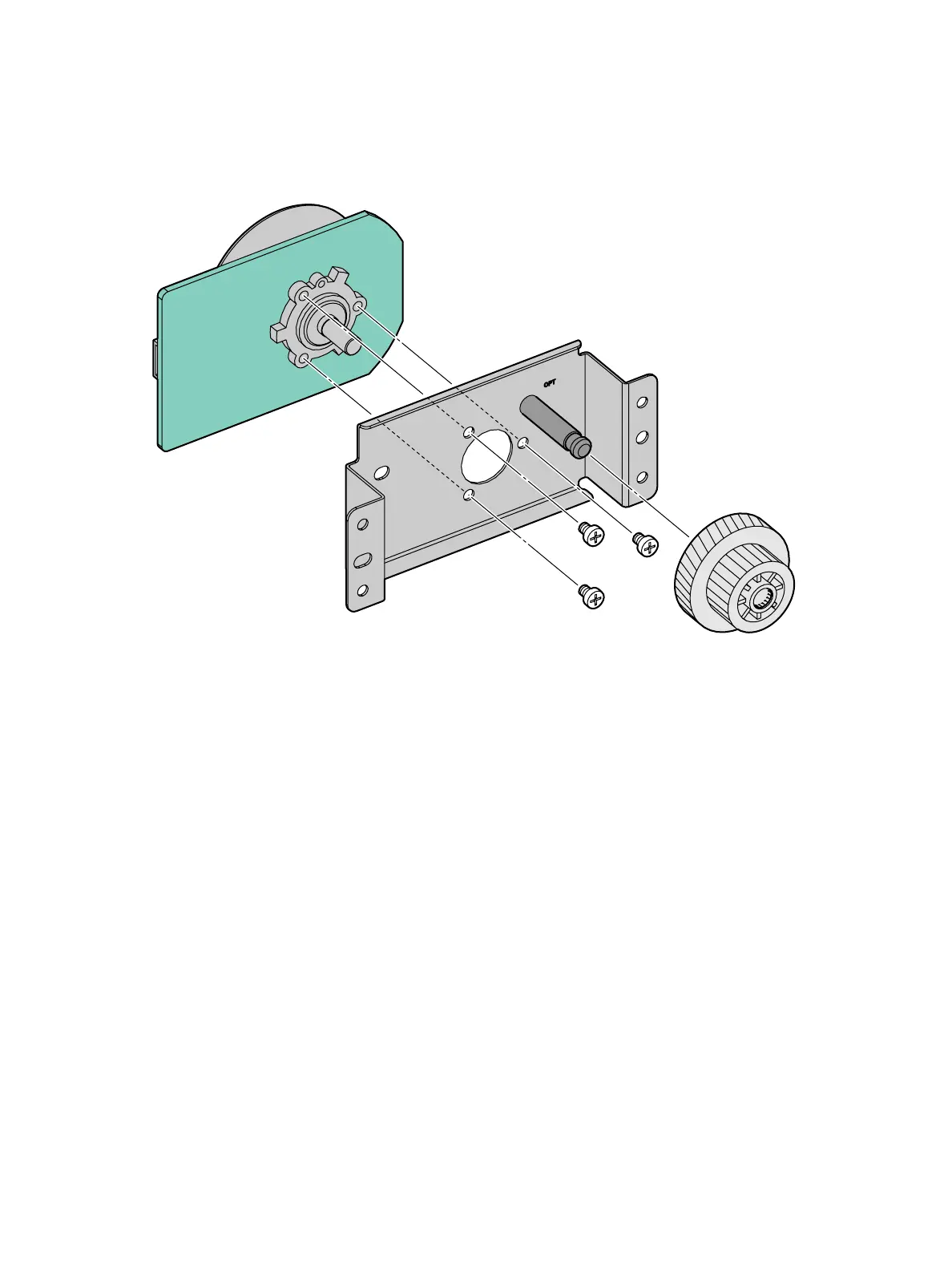

Figure 2
Replacement
1. Replace in reverse order.
s3610-115
