Xerox Phaser 3610

Overview
Phaser 3610, WorkCentre 3615 Service Manual 1-29

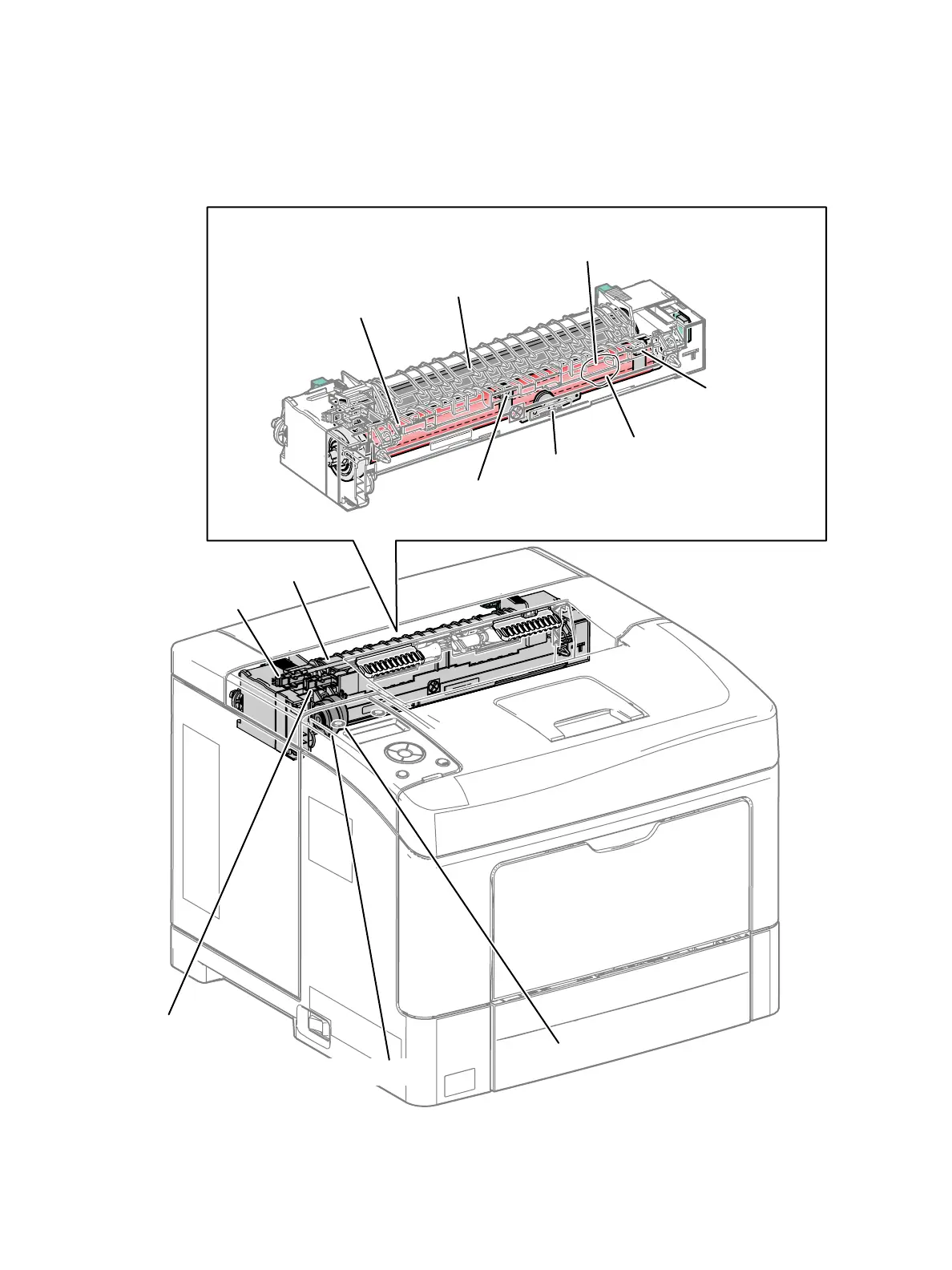

Illustration 4 (3610 / 3615)
Fusing Assembly
Exit Sensor
Full Stack Sensor
Invert Clutch
Exit Clutch
Heat Roller
Pressure Belt
Heater Lamp 1 (Short )
Thermostat
Temperature
Sensor
(Side)
Temperature Sensor
(Main)
s3610-282
Heater Lamp 2 (Long )
