Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-28
REP 1.17 Lower Left Side Cover (3615)
PL 1.2 Covers (3615)
Removal
WARNING: Allow the Fusing Assembly to cool before servicing the product.
1. Remove (REP 1.16 Upper Left Side Cover (3615)).
2. Remove the ESS Cover.
3. Remove the Lower Left Side Cover. (Figure 1)
a. Remove 4 screws (silver, tapping, 8mm).
b. Release 4 bosses and 2 clips.
c. Disconnect P/J241.
d. Release the cable tie.
e. Remove the cover.

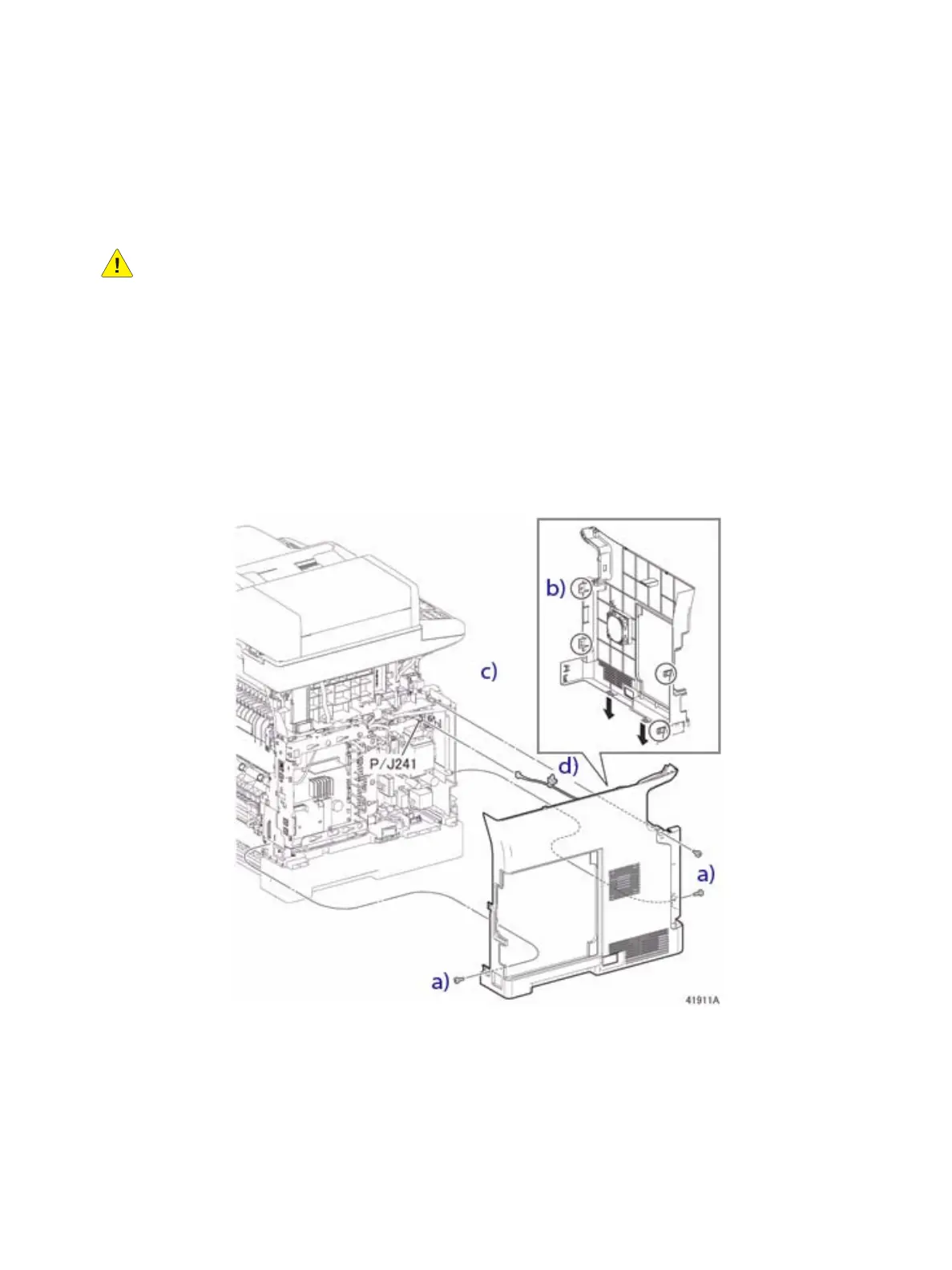

Figure 1
Replacement
1. Secure the clips on the bottom of the cover first, before engaging the bosses.
2. Replace in reverse order.
