Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-120
550-Sheet Feeder Repairs
REP 7.1 550-Sheet Feeder
PL 7.1 Tray 1/Optional Tray 550-Sheet Feeder (1/4)
Removal
1. Separate the Printer from the Feeders. (Figure 1)
a. Remove the Bypass Tray
b. Remove the Tray from the 550-Sheet Feeder.
c. Remove 2 Screw Locks that secure the feeder to the printer.
d. Release 5 bosses on the feeder from the holes on the printer, then lift the printer to separate
it from the feeder.

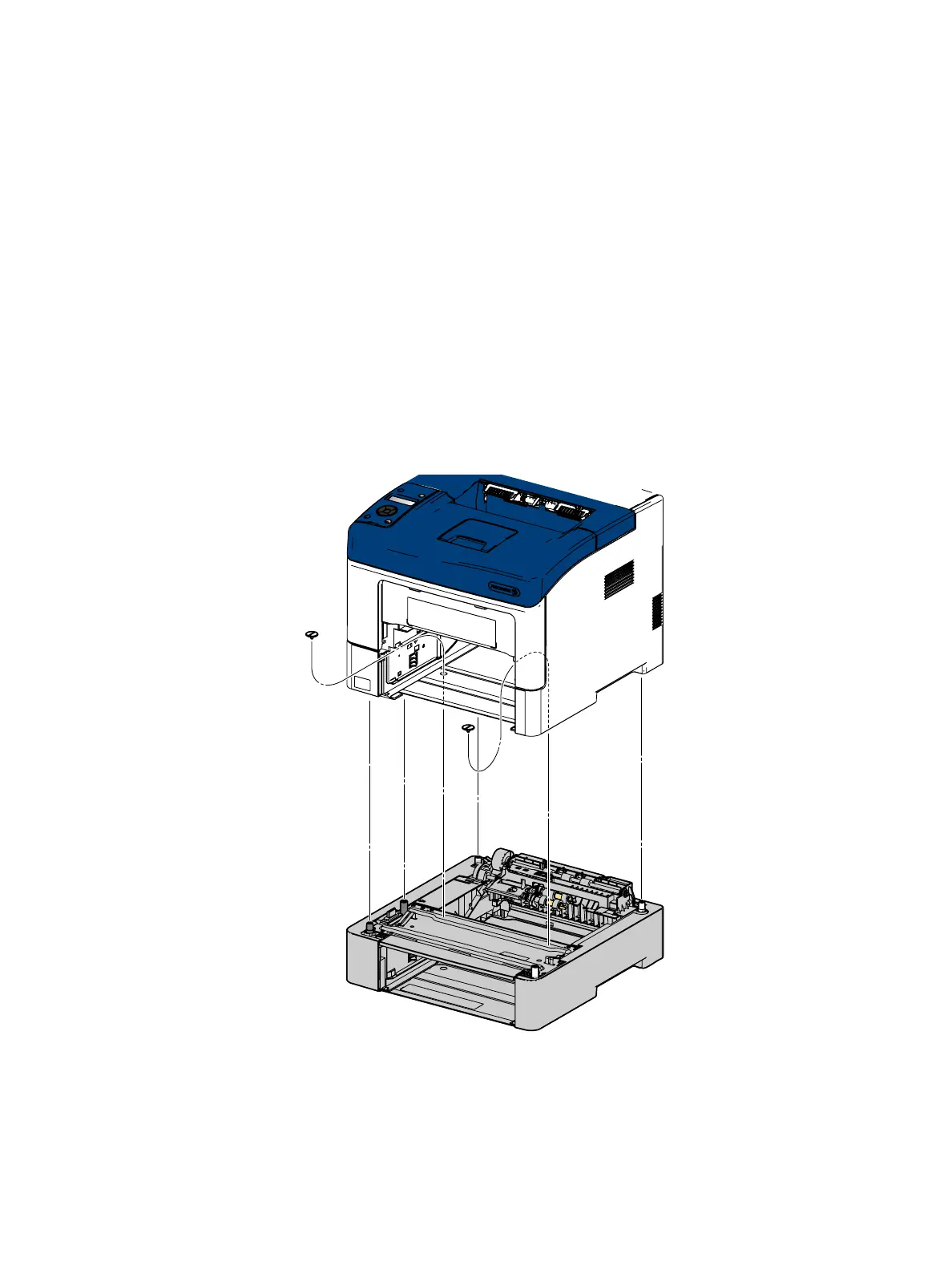

Figure 1
Replacement
1. Replace in reverse order.
