Troubleshooting
Phaser 3610, WorkCentre 3615 Service Manual 2-15
Motor Test (Digital Output)
Checks whether the DO (digital output) components such as motors and clutches are functioning prop-
erly. You can enable the test for each DO component and check the operation from the outside, which
helps you judge which component functions normally.
The Motor Test allows you to operate all components at one time.
If the interlock is opened during a motor test, the operation of each component is stopped.
Note: Except for 010-001, and 042-003, set LVPS 24V (041-001) to ON (EXEC). Otherwise, the
component does not operate.

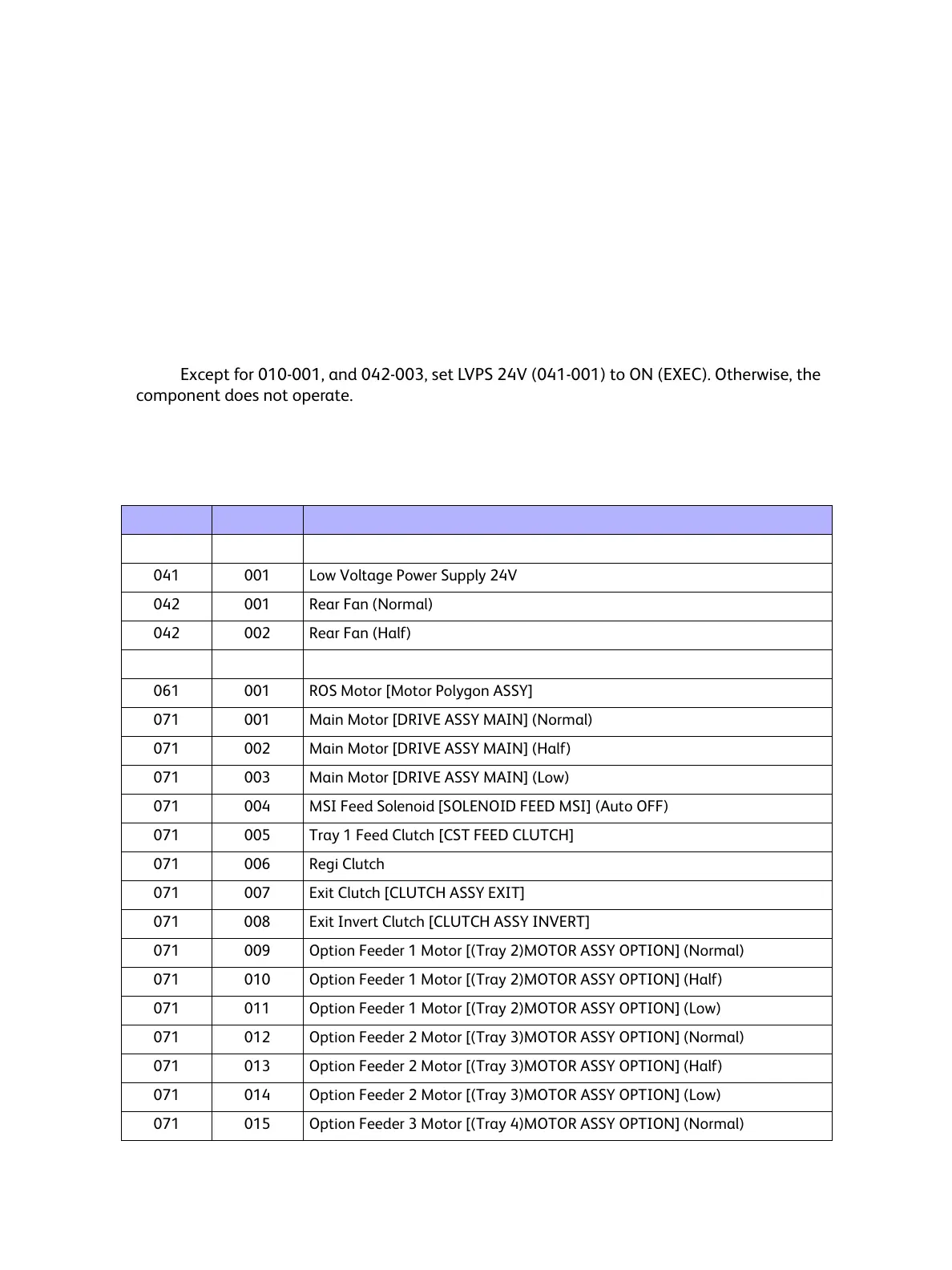

Motor Test Parameter Table
Chain Link Component
010 001 Fusing Relay
041 001 Low Voltage Power Supply 24V
042 001 Rear Fan (Normal)
042 002 Rear Fan (Half)
042 003 LVPS Fan
061 001 ROS Motor [Motor Polygon ASSY]
071 001 Main Motor [DRIVE ASSY MAIN] (Normal)
071 002 Main Motor [DRIVE ASSY MAIN] (Half)
071 003 Main Motor [DRIVE ASSY MAIN] (Low)
071 004 MSI Feed Solenoid [SOLENOID FEED MSI] (Auto OFF)
071 005 Tray 1 Feed Clutch [CST FEED CLUTCH]
071 006 Regi Clutch
071 007 Exit Clutch [CLUTCH ASSY EXIT]
071 008 Exit Invert Clutch [CLUTCH ASSY INVERT]
071 009 Option Feeder 1 Motor [(Tray 2)MOTOR ASSY OPTION] (Normal)
071 010 Option Feeder 1 Motor [(Tray 2)MOTOR ASSY OPTION] (Half)
071 011 Option Feeder 1 Motor [(Tray 2)MOTOR ASSY OPTION] (Low)
071 012 Option Feeder 2 Motor [(Tray 3)MOTOR ASSY OPTION] (Normal)
071 013 Option Feeder 2 Motor [(Tray 3)MOTOR ASSY OPTION] (Half)
071 014 Option Feeder 2 Motor [(Tray 3)MOTOR ASSY OPTION] (Low)
071 015 Option Feeder 3 Motor [(Tray 4)MOTOR ASSY OPTION] (Normal)
To Next Page
