Xerox Phaser 3610

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-43
REP 2.3 Feeder Assembly
PL 2.3 Feed Assembly
Removal
WARNING: Allow the Fusing Assembly to cool before servicing the product.
1. Remove the (REP 2.2 Transport Assembly).

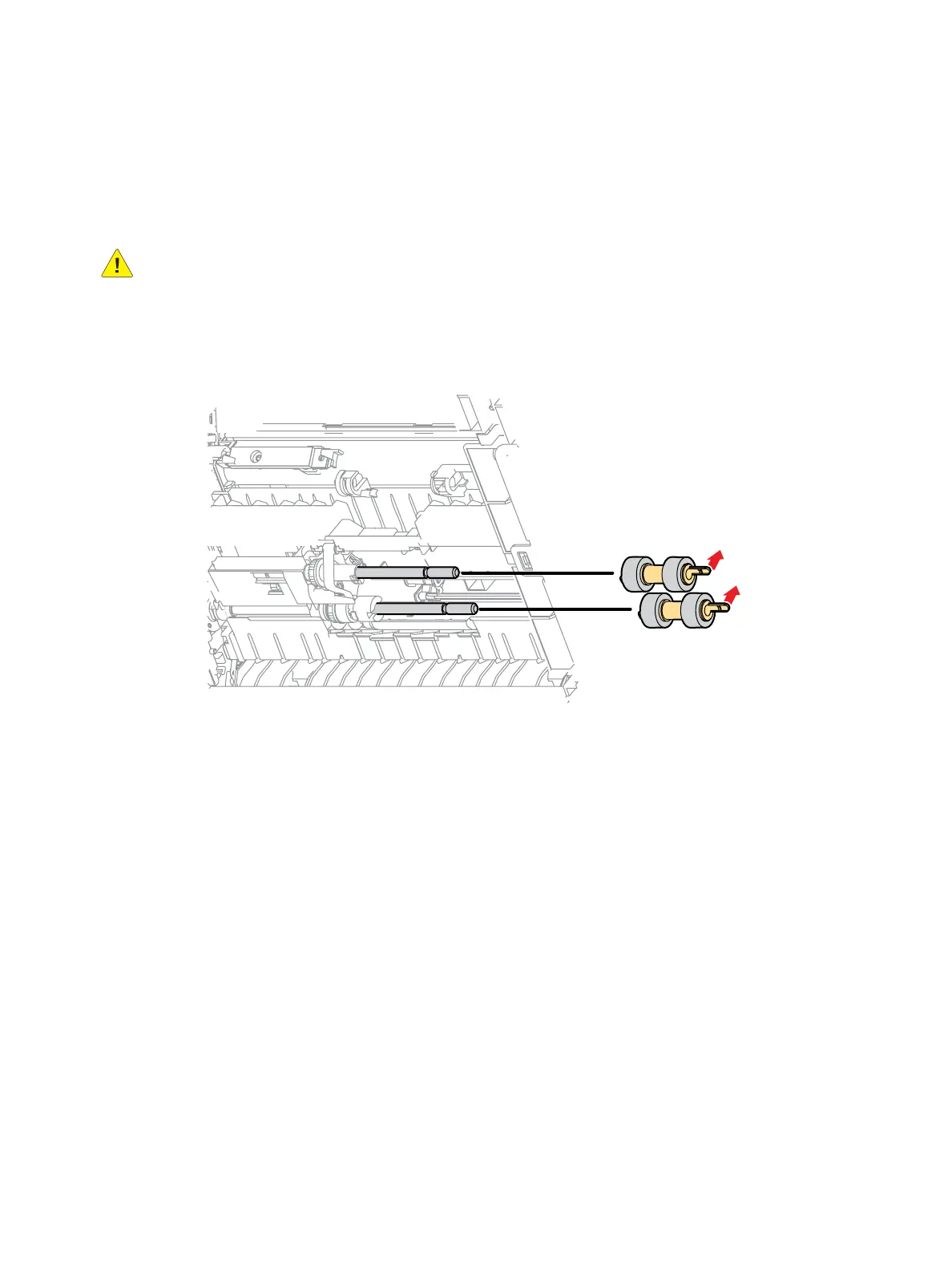

2. Remove the Feed and Nudger Rollers. (Figure 1)
Figure 1
