Phaser 3610, WorkCentre 3615 Service Manual 1-35

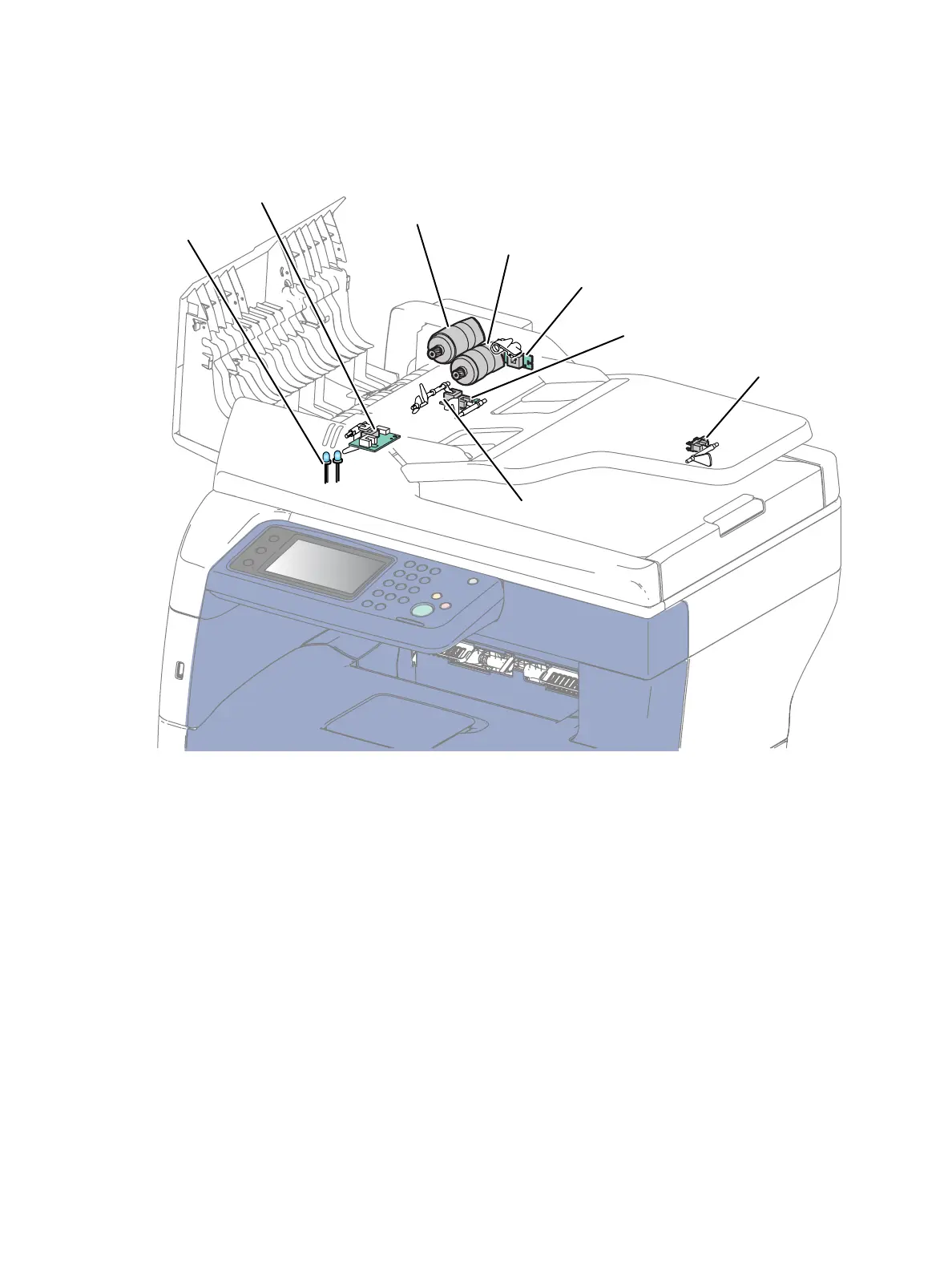

Illustration 10 (3615 only)
s3610-246
Legal Paper Sensor
DADF Document LED
DADF Stage Sensor
Feed Sensor
DADF Cover Sensor
Tray Sensor
DADF Motor
Pick Motor
