Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-47
REP 2.5 Feed Clutch
PL 2.2 Transport Assembly
Removal
WARNING: Allow the Fusing Assembly to cool before servicing the product.
1. Remove (REP 2.2 Transport Assembly).

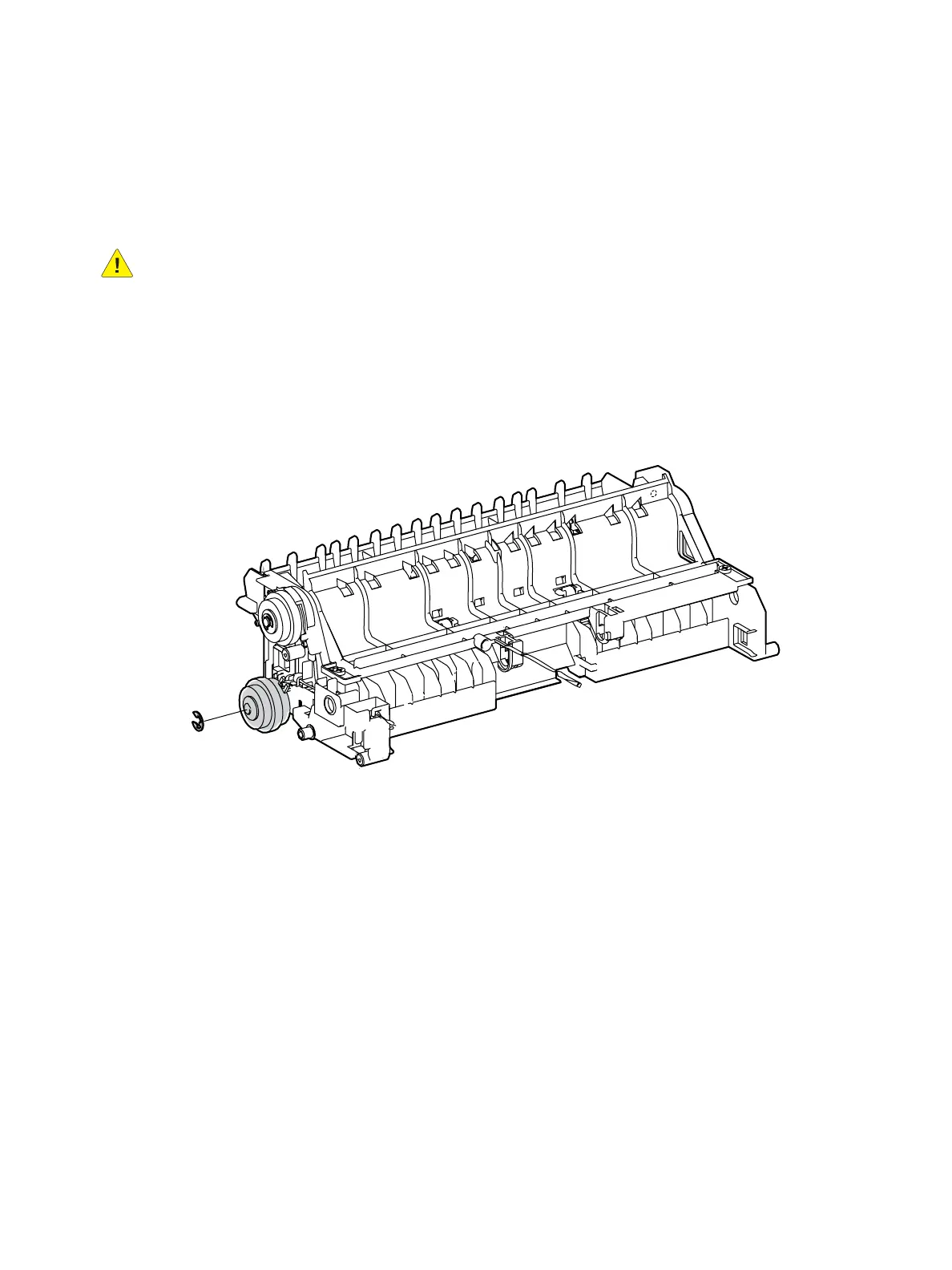

2. Remove The Feed Clutch. (Figure 1)
a. Remove the E-ring that secures the Feed Clutch to the shaft.
b. Release the Feed Clutch harness from the Transport Assembly harness guide to remove the
clutch.
Figure 1
Replacement
1. Replace in reverse order.
